Overview

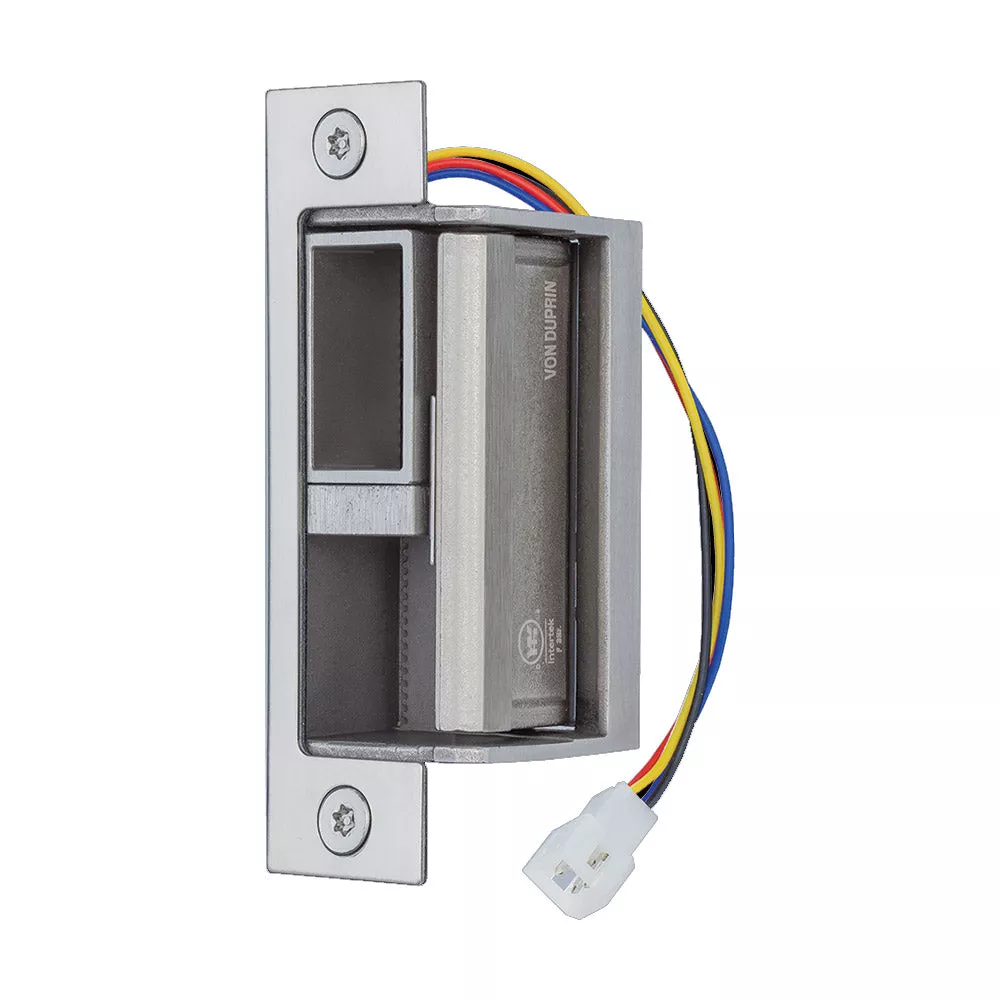

The 6400 Series electric door strike is designed to be highly configurable to fit almost any mortise or cylindrical lock, including those with offset latches. It provides a fail-secure only solution for fire-rated openings.
The strike allows installers to insert and lock in place the deadbolt keeper, or the plug and dead latch ramp, anywhere within its 3-1/8” vertical opening to suit latchbolt position and functional needs Combined with horizontal adjustability, this makes the easy-to-install 6400 Series a good fit for installations where misalignment or a tight fit may be a problem.
Application
- Fits cylindrical and nearly any mortise lock
- For interior or exterior doors with hollow metal, aluminum, or wood frames
- 3-hour fire-rated to UL 10C (fail secure only)
Versatility
- Modular design is configurable to functional needs
- Two faceplates standard
- Field-selectable 12/24 VDC or 12/24 VAC
- Non-handed, internal solenoid design
- 1/8″ horizontal with a range of vertical adjustments for misaligned doors & frames
Strength and durability
- Heavy-duty stainless steel construction
- 1500 lbs. static strength
- 70 ft-lbs. dynamic strength
Opening
- Single doors with wood, hollow metal or aluminum frames
- Mortise locks, cylindrical locks and dead latch applications
- 1″ deadbolt (as night latch only, no release)
Throw
- 3/4″ latch
Power
- Field-selectable voltage
- 12 VDC continuous duty at 0.375 Amp
- 24 VDC continuous duty at 0.19 Amp
- 12/24 VAC intermittent duty at 0.28-0.565 Amp
Dimensions
- See the 6400 Series data sheet for dimensions and wiring diagrams.
- Standard 4-7/8″ faceplates (one each for offset and centerline locks)
- 1-3/4″ backbox depth
Available finishes
- BHMA 630 satin stainless steel
Part options
- Plug-in latchbolt monitor
- 12 VAC to 12 VDC rectifier
- 24 VAC to 24 VDC rectifier
- Entry buzzer
