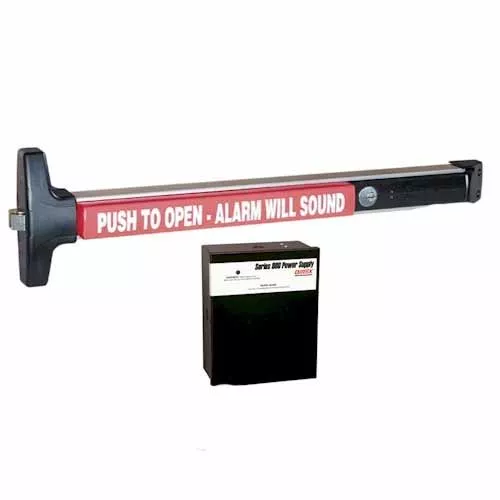

Detex V40 EE CD 628 99 36″ or 48″ Electronic Delayed Egress Panic (self contained) provides a 15 second delay and a 100 decibel alarm, Power Supply, flex conduit and door sign.
Standard V40 Rim Device accommodates wide stile doors, 3” or greater stile, and flush doors.
For Narrow Stile doors, 2” to 2 1/2” stiles, specify V40 NS model which provides a 2” longer device and a lower profile strike.
Units are sold less standard mortise cylinder. (takes any mortise cylinder with straight cam)
Cylinder Option Available: Mortise cylinder with straight cam for arming and disarming.
EE – Delayed Egress
