Wood’s Powr-Grip LP6HG2B6″ Aluminum Handi-Grip Vacuum Hand Cups for Flat Surfaces (70 lbs / 32 kg per Cup)Matched Pair of 2 with Carrying Case
The Wood’s Powr-Grip LP6HG2B is a matched pair of 6″ aluminum Handi-Grip vacuum hand cups designed for versatile lifting and positioning of a wide variety of flat smooth, nonporous materialsincluding windshields, stone tiles, and sheet materials. Each cup features a 6″ (15 cm) standard rubber suction pad (Model LP6), an aluminum Handi-Grip handle, and an industrial-grade plastic plunger, with a rated load capacity of 70 lbs (32 kg) per cup on flat surfaces. Operable down to 0F (-18C). Sold as a matched pair of 2 (SKU: 91337, Model: LP6HG) with a durable carrying case. Manufactured by Wood’s Powr-Grip.
The LP6HG2B is the matched-pair configuration of the LP6HGthe same cup sold as a Pack of 4 (SKU: 91335). The two-cup matched pair with carrying case is designed for two-person coordinated lifts where each operator uses one cup, or as a dedicated two-cup field kit. The carrying case keeps both cups together and protected during transport. All LP6HG specificationspad, capacity, handle geometry, temperature ratingare identical between the LP6HG2B and the LP6HG Pack of 4.
Key Features & Benefits
Aluminum Handi-Grip HandleVersatile Positioning Across a Wide Range of Materials
The Handi-Grip handle provides ergonomic control for comfortable, precise positioning of windshields, stone tiles, sheet materials, and other flat smooth nonporous items. Unlike the offset fixed handle (which prevents load swing), the Handi-Grip is optimized for versatile positioning where the operator needs natural hand control across different material types and sizes. The aluminum construction is lightweight and corrosion-resistant in wet and outdoor environments.
Windshield, Stone Tile, and Sheet Material Handling
The LP6HG2B is specifically suited for windshields and automotive glass, stone tiles and decorative stone, and general flat sheet materialsthe same three material categories as the LP6HG Pack of 4, now in a matched two-cup field kit configuration.

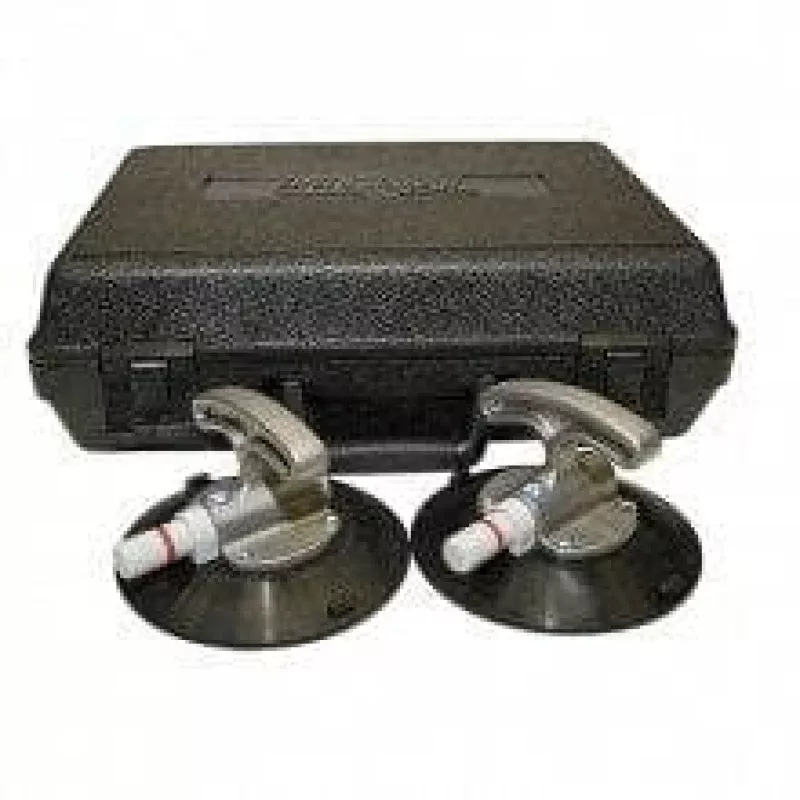

Matched Pair of 2 with Durable Carrying Case
The LP6HG2B provides two matched LP6HG cups with a durable carrying case, keeping the pair together and protected during transport. The matched pair is designed for two-person coordinated lifts (one cup per operator) or as a dedicated two-cup field kit. The carrying case is the key packaging differentiator between the LP6HG2B and the LP6HG Pack of 4 (which ships with vacuum pad protectors).
70 lb (32 kg) Per Cup140 lb CombinedLP6 Pad0F Rating
Each cup is rated for 70 lbs (32 kg), giving a combined capacity of 140 lbs (64 kg) for a coordinated two-cup lift. Uses the LP6 standard rubber pad (6″ diameter)shared with the LP6RH and LP6RH2B, making replacement pads interchangeable across all LP6 family models. Rated for operation down to 0F (-18C). Red-line indicator warns of any significant vacuum loss.
Common Applications
Two-Person Coordinated Flat Panel Lifts
The matched pair configuration supports two-person coordinated lifts where each operator holds one cup at opposite ends of a flat panel. Always lift and lower simultaneously on a coordinated signaluncoordinated lifting can overload one cup beyond its 70 lb rating.
Windshield and Automotive Glass Handling
Auto glass technicians use the LP6HG2B to position windshields and flat automotive glass during installation and replacement. The Handi-Grip handle provides comfortable control during precise placement work.
Stone Tile and Sheet Material Positioning
Tile setters, stone installers, and fabricators use the LP6HG2B for flat stone tile, decorative stone, and sheet material handling where the Handi-Grip provides ergonomic control during precise placement.
Cold Weather and Outdoor Job Sites
The 0F cold rating and aluminum handles corrosion resistance make the LP6HG2B suitable for outdoor winter construction and wet environments.
Compatible Materials
- Flat automotive windshields and flat glass
- Flat plate glass and float glass
- Tempered and laminated safety glass (flat)
- Stone tile and polished stone panels (flat)
- Glazed ceramic and polished porcelain tile (flat)
- Acrylic sheet, polycarbonate, and smooth metal panels (flat)
- Any smooth, nonporous flat surface with load70 lbs per cup
Not compatible with: curved surfaces (flat only); rough, textured, or porous surfaces; surfaces contaminated with oil, wax, or debris.
Technical Specifications
Safety Data Summary
- Always lift and lower simultaneously on a coordinated signal when using both cups on a single paneluncoordinated lifting can overload one cup beyond its 70 lb rating
- Vacuum loss during a lift can result in sudden load drop, causing serious injury or property damage
- Do not exceed 70 lbs (32 kg) per cup
- Flat surfaces onlydo not use on curved surfaces
- Damaged or contaminated suction pads must be replaced before use
- In cold environments, verify pad flexibility above 0F (-18C) before use
- Do not use above 5,000 ft (1,500 m) elevation
- Safety glasses or face shield, cut-resistant gloves, and steel-toed footwear required
Frequently Asked Questions
Q: What is the difference between the LP6HG2B and the LP6HG Pack of 4 (SKU 91335)?
A: Both use the same LP6HG cupsame LP6 pad, aluminum Handi-Grip handle, plastic plunger, 70 lb capacity, 0F rating, and flat-only surface rating. The LP6HG2B is a matched pair of 2 cups with a durable carrying case, designed for two-person coordinated lifts as a dedicated matched set. The LP6HG Pack of 4 (SKU: 91335) provides four cups with vacuum pad protectors, suited for higher-volume operations. Choose the LP6HG2B for a dedicated two-cup field kit with carrying case; choose the Pack of 4 for higher-volume operations.
Q: What is the difference between the LP6HG2B and the LP6RH2B?
A: Both are matched pairs of 2 LP6 family cups with carrying cases and 70 lb / 0F / flat-only ratings. The LP6HG2B uses a Handi-Grip handle optimized for versatile positioning across windshields, stone tiles, and sheet materials. The LP6RH2B uses an offset fixed handle that prevents load swingthe correct choice when load orientation must be controlled during the lift. LP6 replacement pads are interchangeable between both models.
Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type, load requirements, and operating environment before placing your order.
