TIG Torch Adapter – Dinse 35, External Gas

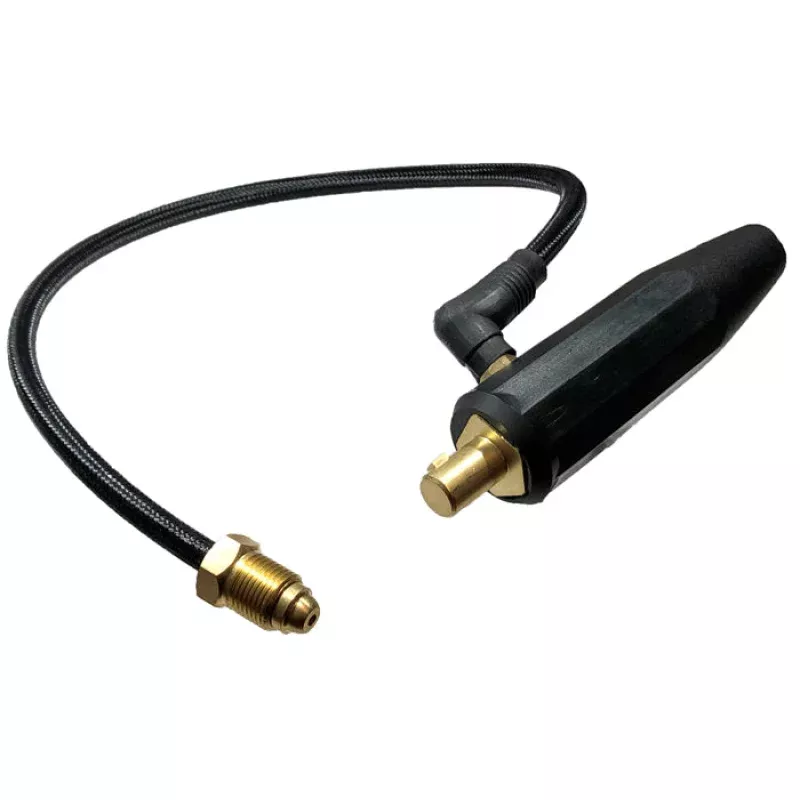

Powerweld TIG Torch Adapterwith External Gas Connection

ThePowerweld TIG torch adapters thread onto standard torch cables to produce a Dinse 35 (50mm) power connection and side gas hose.

• Male power connection: Dinse 35 (50 mm)
• Gas Hose: 5/8″-18 Inert Gas

Detailed Information

• PWTA917 – Fits 9 & 17 Series Torches, 3/8″-24 RH Threads
• PWTA26 – Fits 26 Series Torches,7/8″-14 RH Threads

Compatibility Table

Adapter Part Number Miller Equivalent / Compatible Machines Lincoln Equivalent / Compatible Machines ESAB Compatible Machines PWTA917 (solid 50mm standard Dinse w/ gas side hose for 150A) Miller no. 195378 (DA-917F)
CST 250, CST 280, CST 300, CST 400; Dynasty 200 SD, 200 DX, 210, 210 DX, 280, 280 DX, 300 Series, 350, 400 Series; Invision 350MPa, 352MPa, 354MP; Maxstar 91, 152, 200 Series, 210 Series, 280 Series, 300 Series, 350, 400; Multimatic 255; Pipeworx 350 Fieldpro (w/ Dinse); Syncrowave 250 DX, 350 LX

Lincoln no. K960-1

Invertec 160-S, V200-I, V200-PRO, V250-S, V275- S, V300-I; Power MIG 210MP; Power Wave 355, 355M

Aristo MIG 4004i Pulse, 5000i, U5000i; Caddy Arc 151i, 152i, 201i; Caddy TIG 1500i, 2200i, 2200i AC/DC; ET 141i AC/DC, ET 186i AC/DC, ET 201i DC, 220i AC/DC, 301i AC/DC; Fabricator 211i, 252i; Handy Tig 180; Heliarc 160i, 161 AC/DC, 252, 281i AC/DC, 352, 353i AC/DC; MTS-3500i; Rebel EMP/EMS 215ic, EMP/EMS 235ic; Renegade ES 300i; Warrior 400i MV CC/CV PWTA26 (solid 50mm
standard Dinse w/ gas side
hose for 200A)

Miller no. 195379 (DA-26R)

CST 250, CST 280, CST 300, CST 400; Dynasty 200 SD, 200 DX, 210, 210 DX, 280, 280 DX, 300 Series, 350, 400 Series; Invision 350MPa, 352MPa, 354MP; Maxstar 200 Series, 210 Series, 280 Series, 300 Series, 350, 400; Syncrowave 250 (all models), 300, 350 (all models); Multimatic 255; Pipeworx 350 Fieldpro (w/ Dinse)

Lincoln no. K930-6

Invertec 160-S, V200-I, V200-PRO, V250-S, V275-
S, V300-I; Power MIG 210MP; Power Wave 355,
355M

Aristo MIG 4004i Pulse, 5000i, U5000i; Caddy Arc 151i, 152i, 201i; Caddy TIG 1500i, 2200i, 2200i AC/DC; ET 141i AC/DC, ET 186i AC/DC, ET 201i DC, 220i AC/DC, 301i AC/DC; Fabricator 211i, 252i; Handy Tig 180; Heliarc 160i, 161 AC/DC, 252, 281i AC/DC, 352, 353i AC/DC; MTS-3500i; Rebel EMP/EMS 215ic, EMP/EMS 235ic; Renegade ES 300i; Warrior 400i MV CC/CV
