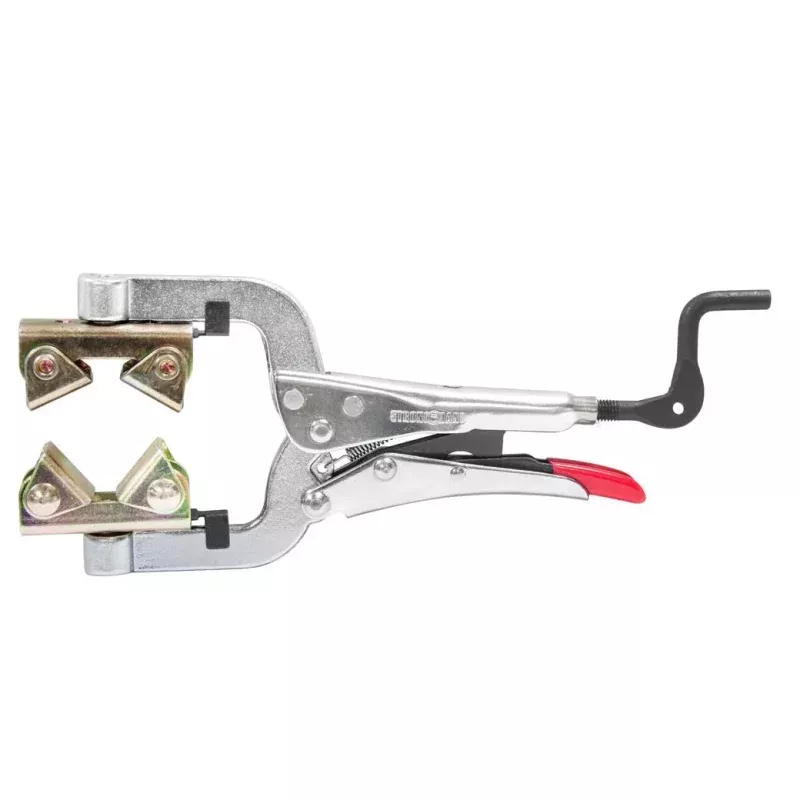

Strong Hand Locking Pipe Pliers

Strong Hand Locking Pipe Pliers

V-Pads for holding pipes and round tubes

The convenient way to hold round or square tubes for butt-welding.

• Wide opening allows the Pipe Pliers to hold up to 2-1/2 diameter pipes.
• Two V-Pads provide a better clamping surface.
• Adjustable top spindle for holding pipes of varying sizes.

Part No. Top V-Pad Bottom V-Pad Throat Depth (in) MAX Clamping Capacity (in) Thread Overall Length (in)

Weight (lb)

PG622V Fixed Fixed 2 1 – 2 M8 6 0.8 PG634V Fixed Fixed 3 2 – 3 M8 8.5 1.1 PG635V Adjustable Magnetic
(0 & 45 rotatable) 3 1.5 – 2.5 M8 8.5 1.2

PG635VS

Adjustable
Stainless Steel (0 & 45 rotatable)
Stainless Steel 3 1.5 – 2.5 M8 8.5 1.2 PG114V Fixed Fixed 3.5 1.5 – 2.5 M10 11 2.8 PG115V Adjustable Fixed 3.5 1.5 – 2.5 M10 11 2.9
