Product Specification

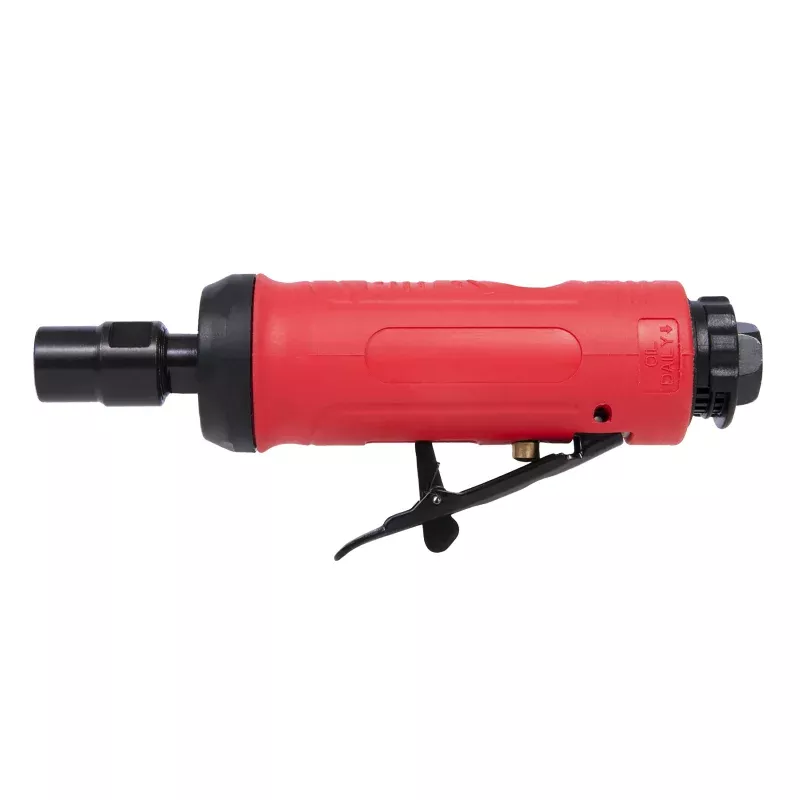

STRAIGHT PNEUMATIC DIE GRINDER
Benchmark Abrasives Straight Pneumatic Die Grinder is engineered for high-speed precision grinding with maximum reach and ergonomic balance. Designed to power through metal prep and cleanup tasks, it delivers the torque and control fabricators rely on every day.
The elongated profile provides excellent line-of-sight and maneuverability for inside corners, edge work, and hard-to-reach welds. A comfortable anti-slip grip stabilizes the tool in your hand, while the smooth throttle lever helps maintain consistent speed during delicate grinding or full-force deburring.
Constructed with hardened steel internal components and wear-resistant bearings, this grinder is built for long-term performance in demanding shops. Paired with the right toolingcarbide burrs, abrasive cartridge rolls, flap wheels, and moreit becomes a versatile workhorse for shaping, smoothing, and finishing metal.
When you need accuracy, power, and a light footprint, this straight die grinder steps up and does the job right.
Quantity: 1 grinder
Use in combination with our carbide burrs, quick-change discs, sanding rolls, small polishing pads, and more
**Discs and Pads sold separately**
Dimensions
- Head TypeStraight/inline
- Collet Size1/4″(6mm) & 1/8″(3mm)
- Max RPM25,000 RPM
- PowerAir powered
- Max Air Pressure90 PSI 6.3kg/cm2
- Air Inlet1/4″
- Air Consumption – 4.0 cfm
- ExhaustRear exhaust keeps air away from your work
- Weight0.80 lb; Lightweight body for improved balance
- SafetyPaddle throttle with lockout mechanism
Application:
- For use in Metal fabrication, Automotive and motorsports, Weld cleanup and chamfering, Rust and scale removal, Porting engine components, Working in confined areas or awkward angles, Tool & die maintenance
- Ferrous MaterialsCast Iron, Steel, Stainless, Steel, Titanium, Nickel, Wrought Iron
- Non-Ferrous MaterialsCopper, Brass, Tin
- Other MaterialsFiberglass, Plastic, Hard Rubber, Wood, Stone, Drywall, Fiberglass etc
- Dry use ONLY
Safety Tips & Techniques:
- Air pressure should not exceed 90 PSI
- Always wear proper PPE to include (but not limited to) safety glasses, hearing protection, respirator, and hand protection. Keep all guards in place on your machine.
- Use in combination with our carbide burrs, quick-change discs, sanding rolls, small polishing pads, and more.
- Warning: Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibration
