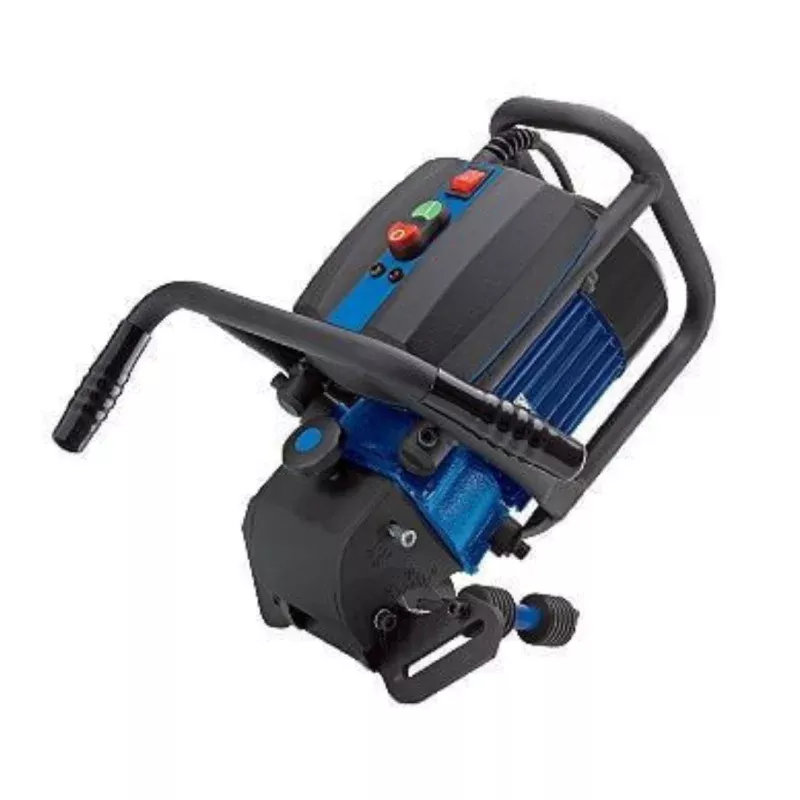

SKF 025 Portable 3/4 Beveling Machine

SKF 025 Portable 3/4″ Beveling Machine

The SKF 025 is a robust, professional-grade solution designed for the fast and easy preparation of weld seams and bevels on both plates and pipes. Engineered for heavy-duty industrial use, this machine delivers precise results on steel, stainless steel, aluminum, and nonferrous metals.

Features

• Versatile Performance: Capable of seamless angle adjustments from 15 to 60 and land widths up to 3/4″.
• Pipe Processing: Includes a built-in pipe roller guide ideal for beveling pipes and tubes with a minimum OD of 6-1/4″.
• Operator Comfort: Features ergonomic handles and an anti-vibration system to reduce fatigue during extended operation.
• Heavy-Duty Power: Equipped with a 15 Amp motor designed with exceptional cooling for continuous use.
• Precision Control: Utilizes roller guides for increased accuracy and safety controls that are easily accessible

Technical Specifications

Order Number SKF 025 Motor Power 15 Amp (1100 W) Voltage 110V (220V/50 Hz available) Beveling Width 3/4″ maximum* Cutting Speed 1800 SFPM Cutting Inserts 10 Dimensions 16-1/2″ L x 13″ H Weight 43 lbs.

Every SKF 025 unit comes standard with one milling head, 10 sintered carbide reversible cutting inserts, assembly tools, a built-in pipe roller guide, a steel carrying case, and a users manual.

Product Data Sheet
