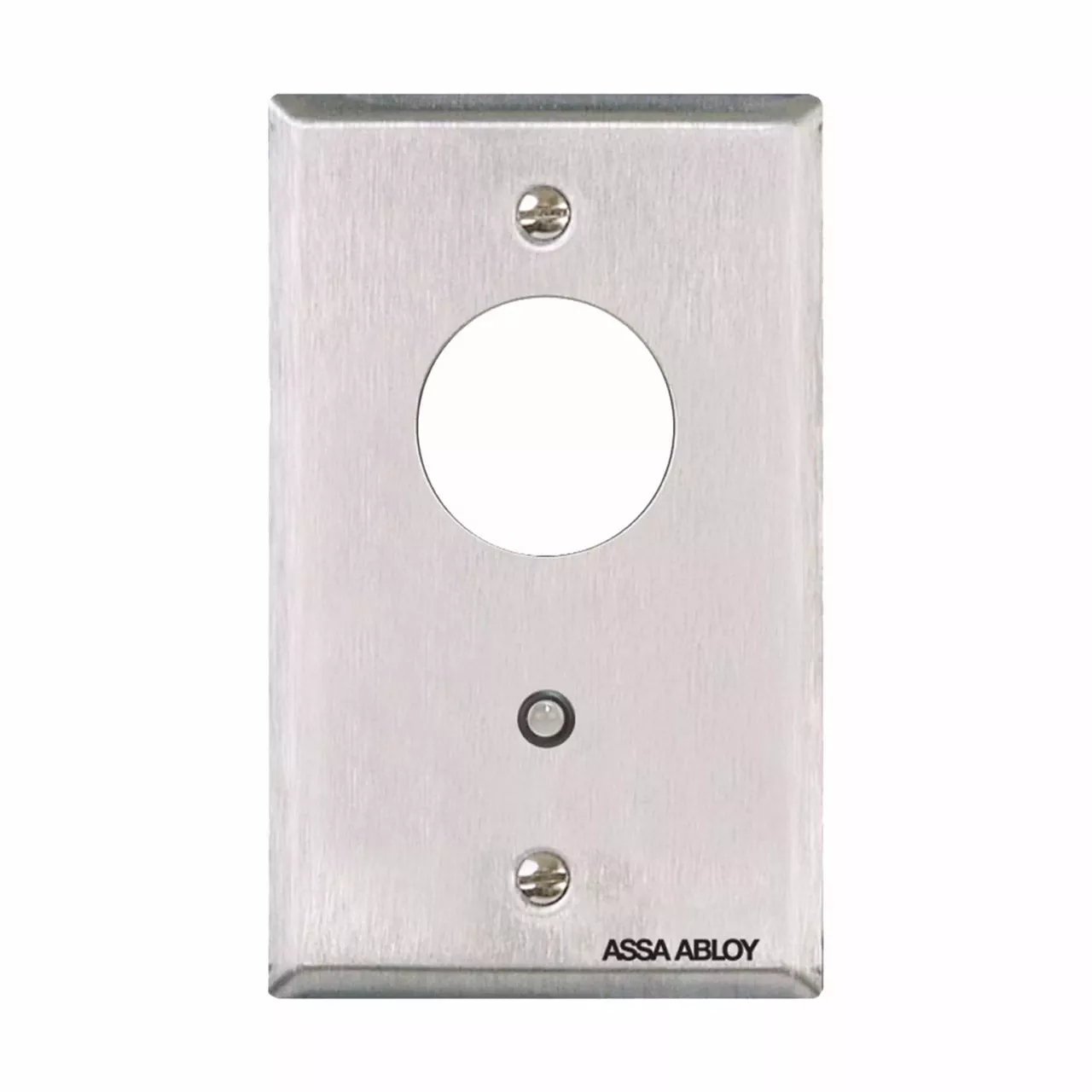

Supports electric lock control, alarm panel arming, reset and override. The MK Mortise Keyswitch supports electric lock control, alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8″ to 1-1/2″.
Product Features
- 1-1/8″ Length, 26D Finish
- 5 Amp rated plunger switch
- Additional switch position on backing bracket allows another switch to be activated by turning the key in the opposite direction
- Backing bracket permits integration with any 1-1/4″ [32mm] or 1-1/8″ [28mm] mortise cylinder (not included)
- Cylinder available for use in the MK
- Includes anti-tamper screws
- SC Keyway
- Standard with 12 or 24 VDC bi-color LED
