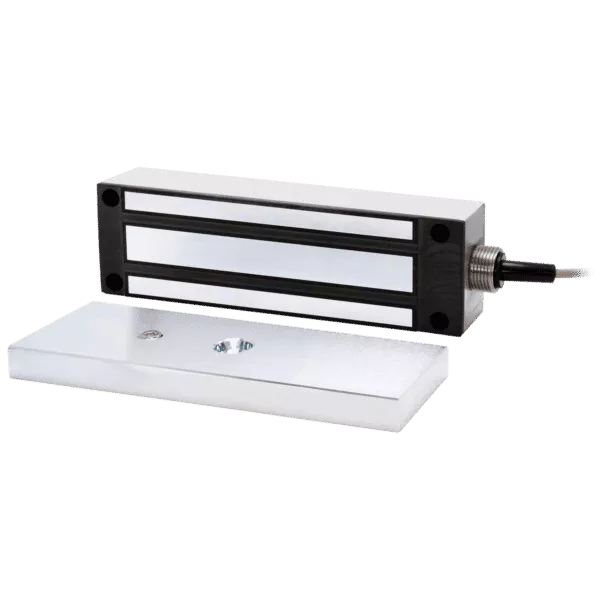

1,200-lb Electromagnetic Gate Lock, Face Mount, UL Listed
- 1,200-lb (545kg) Holding force
- No residual magnetism
- MOV Surge protection
- Face-mount
- For sliding or swinging gates
- Can be mounted horizontally or vertically
- For indoor and outdoor applications
- Maintenance-free, factory-sealed design
- Waterproof (IP67) and vandal resistant
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- 6.5-ft (2m) Hookup cord
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
- Multiple UL listings
-
-
- UL10C Positive Pressure Fire Test – USA
- UL10B Fire Test of Door Assemblies – USA
- ULC-S104 Fire Test of Door Assemblies – Canada
-
-
- Lifetime limited warranty*
*Warranty applies in the USA and Canada only. Contact SECOLARM for details.
| Holding Force | 1,200-lb (544kg) |
| Operating Voltage | 12VDC or 24VDC ±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | Waterproof IP67 |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Electromagnet Dimensions | 8″ x 2-1/2″ x 1-9/16″ (203x64x40 mm) |
| Armature Dimensions | 7-1/4″x2-3/8″x5/8″ (185x60x16 mm) |
| Weight | 11-lb (5kg) |
