Overview

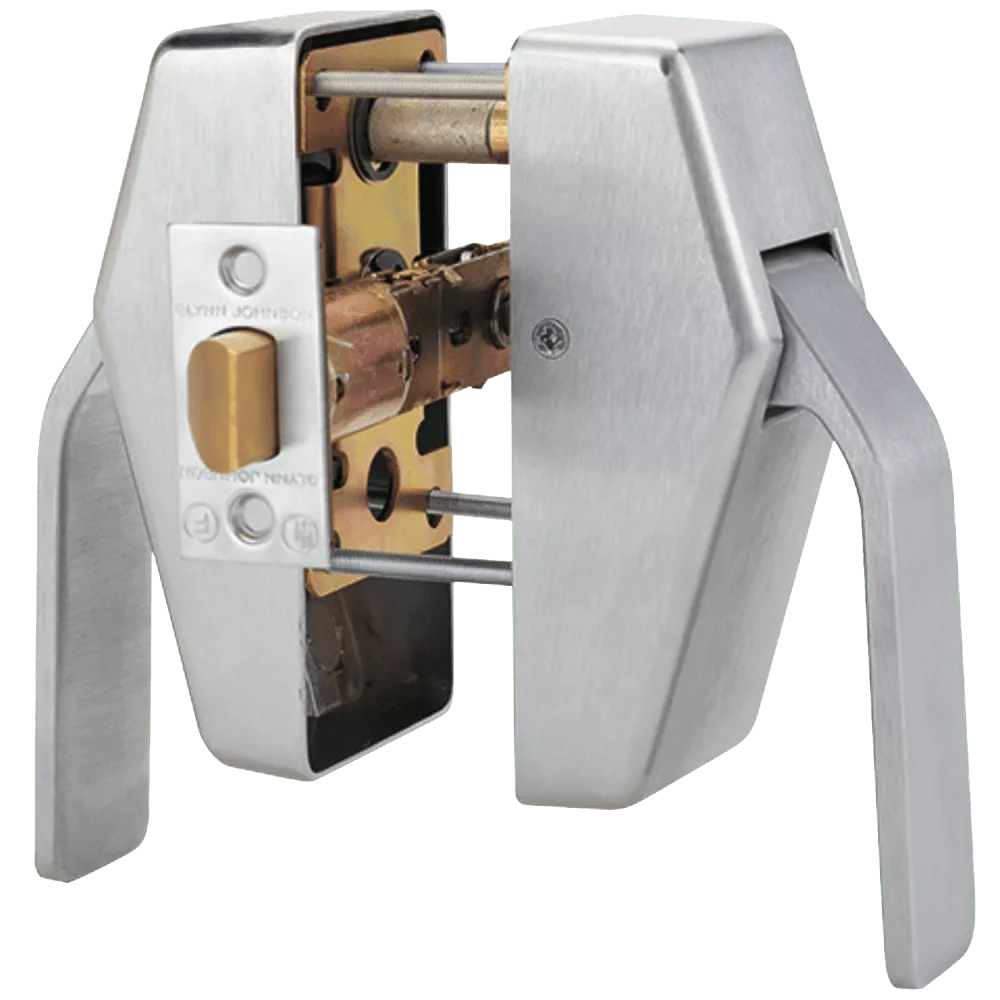

Hospitals and other health care environments have special requirements for noise reduction to help patients heal faster and staff perform efficiently. The HL Series hospital latches are designed for quiet operation utilizing the L Series chassis to add superior strength and durability. The short throw angle allows door opening with an easy push or pull action. Mount them horizontally or vertically in either direction. Optional key override adds an anti-barricade safety feature on three functions helping prevent self-harm situations by allowing the key to override a thumbturn being held in a locked position.
Ideal for use on:
- Patient room doors
- Work areas where quiet concentration is desired
- Busy traffic areas to reduce noise
- Chapels or auditoriums where noise can be disturbing
- Office and administrative areas
Security
- HL mortise chassis is tested and certified to ANSI/BHMA Grade 1 operational and security standards
- UL Listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Pin-in-socket security screws optional for extra protection
- Available lead lining for use in X-ray or other rooms with radiation concern
- Deadbolt functions include anti-saw pin in bolt to prevent cut-through
- Lock monitoring options include request to exit (RX)
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Aesthetics
- Quiet functionality: cushioned action minimizes noise from depression and release of paddle
- Classic design suites with existing solutions
- Variety of vertical or horizontal mounting positions fit a wide range of applications
- Optional “PUSH” and “PULL” engraving on handles
- Eight available finishes with options for antimicrobial coating
Functions
- 14 keyed and non-keyed functions
- Three mechanical functions offer optional key override of the inside thumbturn when it is being held in the locked position to stop unwanted barricade situations
- Two additional HL Series electrified mortise hospital latch functions available (see separate web page for details)
- Three non-keyed HL/PL Series tubular hospital latch functions (see separate web page for details)
- Compatible with Von Duprin 9875/9975 mortise exit device
Built to Last
- Two piece anti-friction tongue in latch bolt reduces wear
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
