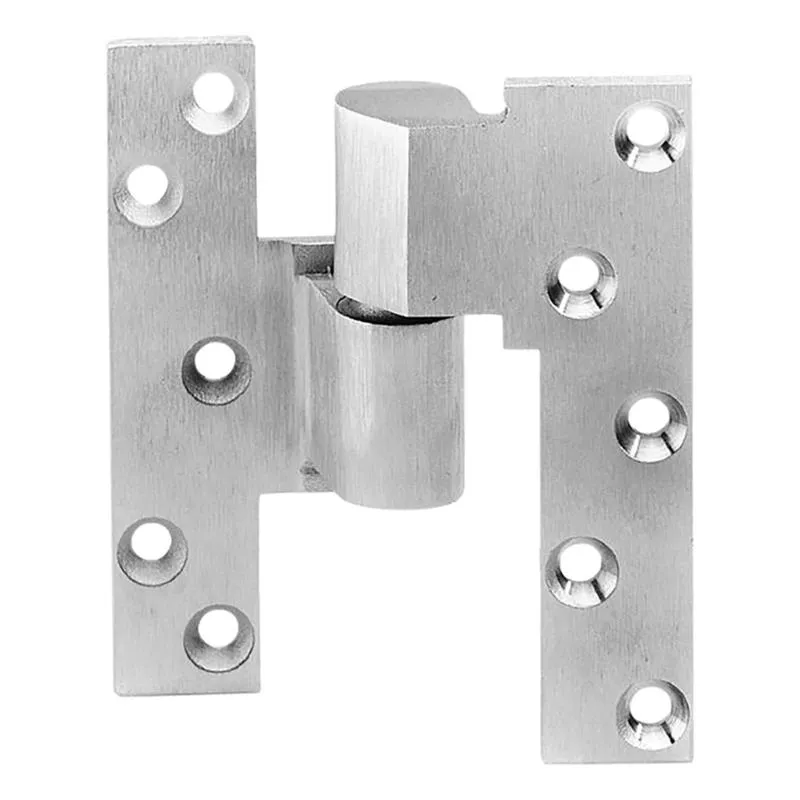

Application
Full Mortise
Handed
Not load-bearing
Maintains door alignment
Aids in installing floor closers and bottom pivots
For 20-minute label suffix “–20” to the part number
Non-ferrous base metal
3/4″ (19mm) offset
Available for 1-1/2″ (38mm) offset
Available for fire door assemblies (ferrous material) – specify FM19
Doors 60″ (1524mm) to 90″ (2286mm) in height should use one intermediate pivot. Each additional 30″ (762mm) warrants another intermediate pivot
Door edges must be beveled in 1/8″ in 2″
Furnished with wood and machine screws
