WALL MOUNTED | ELECTROMAGNETIC DOOR HOLDER/RELEASES
MODEL 990M

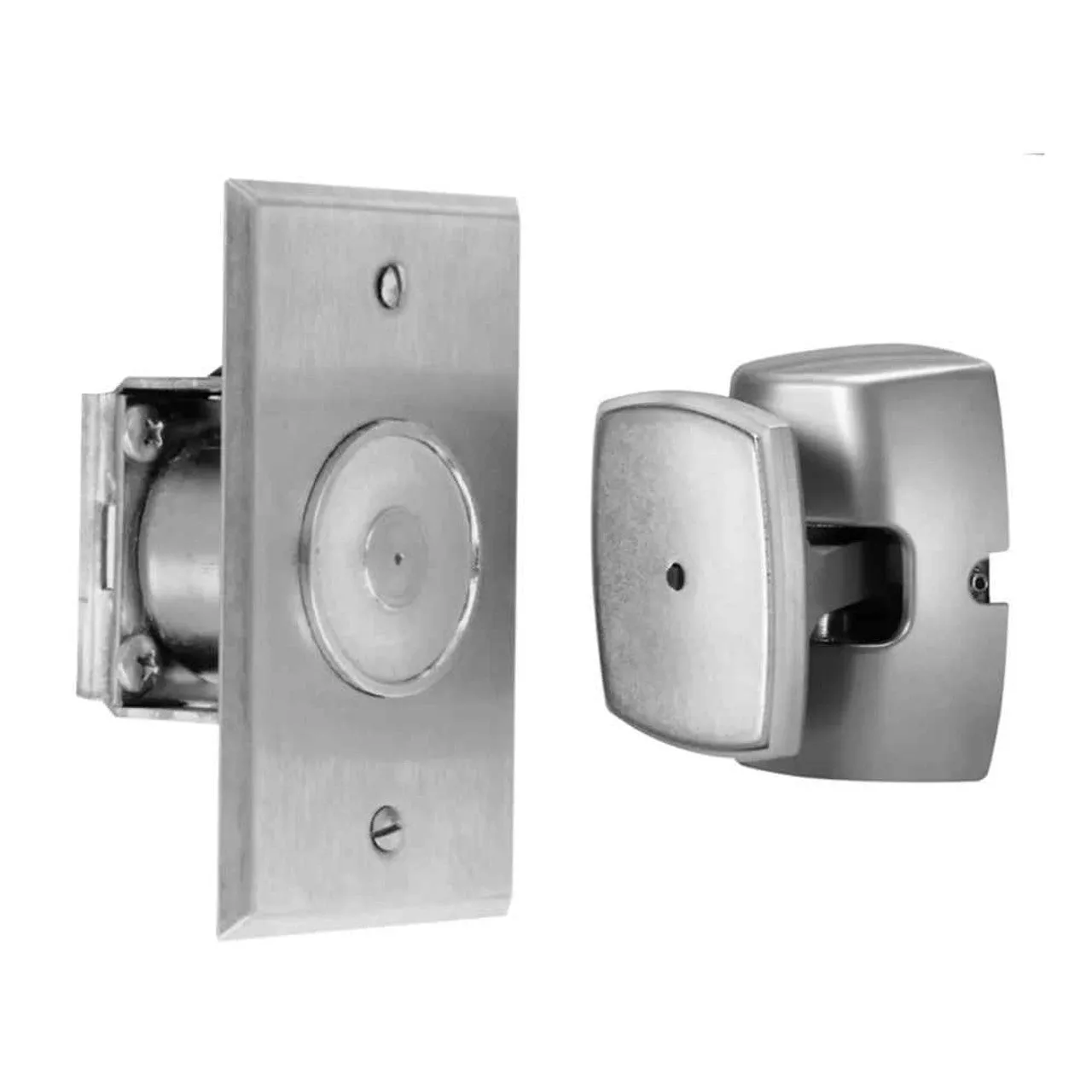

The Norton Rixson 990M electromagnetic door holder is a low-profile, wall-mounted unit with a total projection of 1-13/16″.
PRODUCT FEATURES
- Low projection wall
- Wall mount
- Low profile
- Concealed wiring
- Total projection: 1-13/16″
- Mounting requirements: 2″ x 4″ x 2-1/2″ outlet box
- The wall must be properly reinforced, and the outlet box adequately fastened
- Tri-volt (120VAC, 24VAC/DC, 12VDC)
- 25-40 lbs. holding force
- For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC
