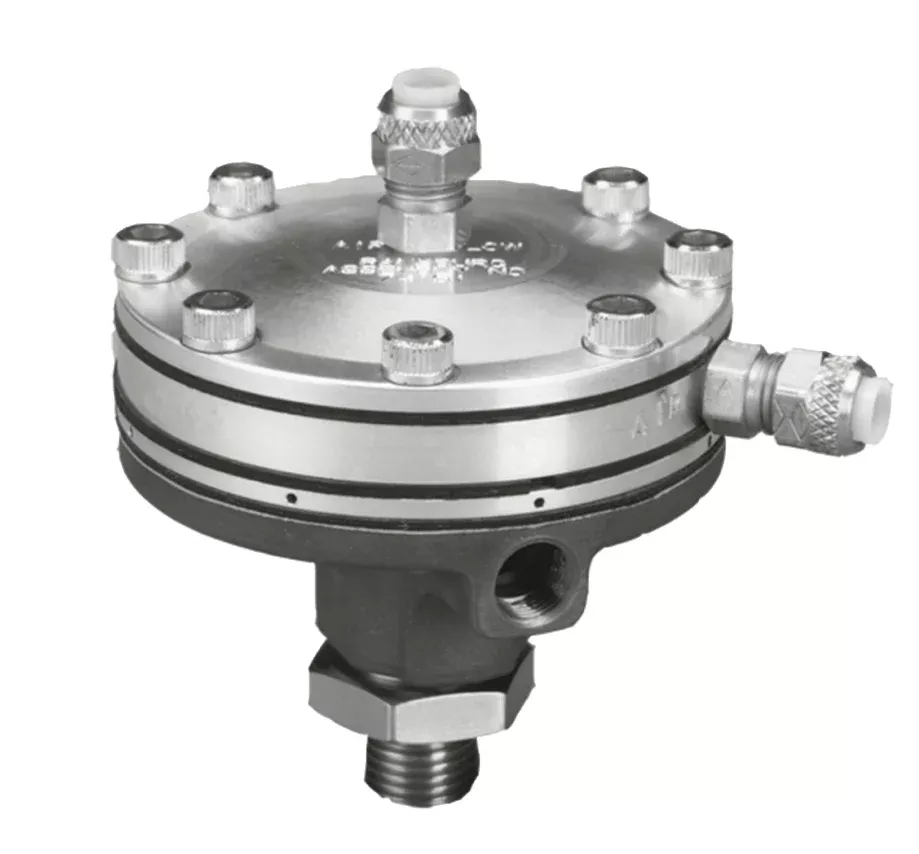

RANSBURG 74151-01 REGULATOR,DR1,2-STAGE,1:2
Features
- Two independently controlled flow pressure ranges.
- High flow range port for higher fluid deliveries.
- Low flow range for more precise control over lower fluid deliveries.
- Interchangeable low flow ratios (1:1, 1:2, 1:3, 1:4, 1:6, 1:8, 1:10) for precise control.
- Stainless steel and coated wetted parts for decreased color change time.
| Ratio: | 1:2 |
| Stage | 2 |
| Air Pressures: | Variable by Control (Manual or Automatic) 100 psi |
| Fluid Input: | 300 psi (10 psi minimum above output pressure) |
| Fluid Output: | Variable by Ratio |
| Air Pilot: | 10-32 Thread (Low & High) |
| Fluid In: | 1/4-inch NPSM Thread |
| Fluid Out: | 1/8-inch NPSM Thread |
| Volume of Paint Held w/in Regulator: | 5cc |
| Height: | 1-7/8-inch |
| Height w/ Fittings: | 2-1/8-inch |
| Diameter: | 2-3/4-inch |
| Diameter w/ Fittings: | 3-3/8-inch |
