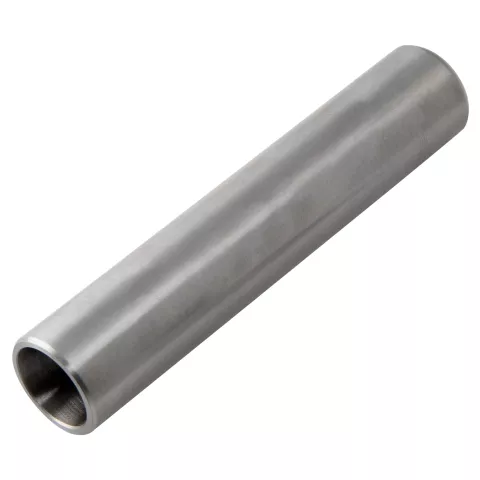

- Quill for mini lathe tailstock with DRO
- 2 Morse Taper bore
- Overall length 110 mm
- Diameter 22 mm
- Keyway 4 mm x 75 mm in length
This is the quill for the tailstock on HiTorque deluxe mini lathes that have a tailstock DRO (SIEG SC2).
It has a 2 Morse Taper bore.
Overall length is 110 mm and diameter is 22 mm. The keyway on the underside is 4 mm x 75 mm in length.
The body of the quill has no dimensional markings as that function is handled by the DRO.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Overall Length | 4.33″ (110.0 mm) |
| Diameter | 0.87″ (22.0 mm) |
| Keyway | 4 mm x 75 mm |
| Bore | 2 Morse Taper |
