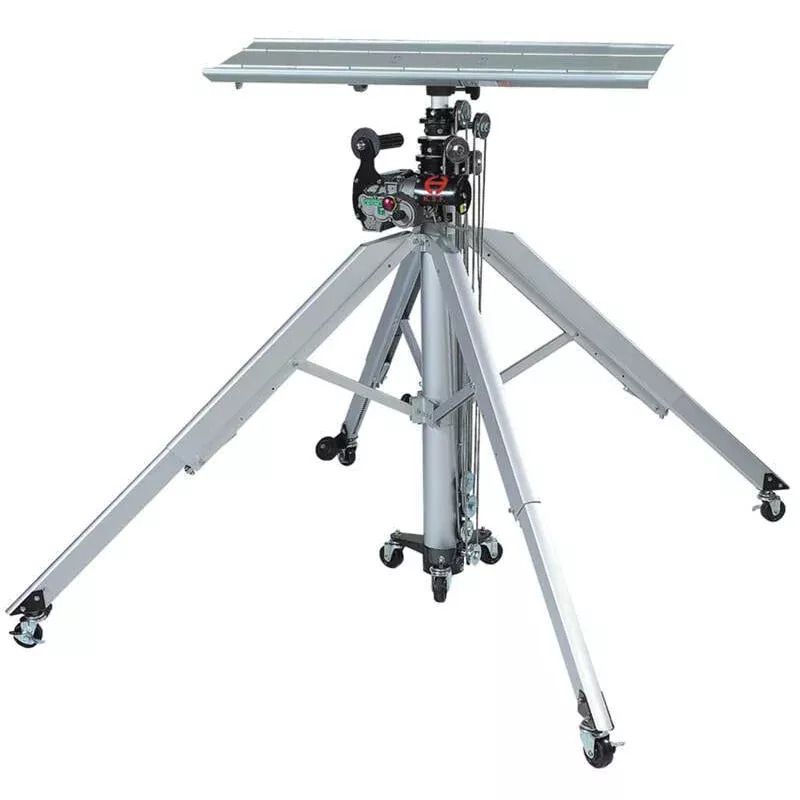

Portable Lifter CM Series|CM-340&CM-520

Portable Lifter CM Series has easy setup, easy level, easy fit, and variable speed electric lifting capabilities

There are two Portable Lifters available the CM340 and CM520. Each is a compact unit that is easy to transport and can setup in under 30 seconds. These multi-purpose lifters are perfect for air conditioners, awnings, garage doors, glass, windows and more.

• Telescoping Legs – For uneven surfaces such as stairways, slopes, etc.
• Leveling Mast – Ensure mast is vertical before operation.
• Telescoping Mast – Compact, Strong and Light – made with robust, specially heat-treated aluminum.
• Electric Motor (110 Volt) – Variable speed controller with long cable and belt clip.
• Manual Controls – lf no power available, use electric drill or handle to wind lifter.
• Emergency Stop Button – Also used to switch to manual control.
• Setup in 30 seconds – No tools required.
• Overload Cut-Out – Fitted with overload clutch for safety.
• Wheels for Mobility – Included with CM520 – optional accessory with CM340.
• Retractable – Lift loads adjacent to wall.
• Fine Positioning – Align load precisely with variable speed controller.

Models Basic Height Lifting Height Max Load Capacity Lifter Weight Lifter Platform Dimensions-Stowed Dimensions-Operating CM-340 38 Inch 11 Feet 290 lb – 10 ft 46 LBS 11 LBS 12 x 12 Inch 38 x 38 Inch CM-520 46 Inch 16 Feet 260 lb – 11 ft 83 LBS 11 LBS 15 x 15 Inch 56 x 56 Inch
