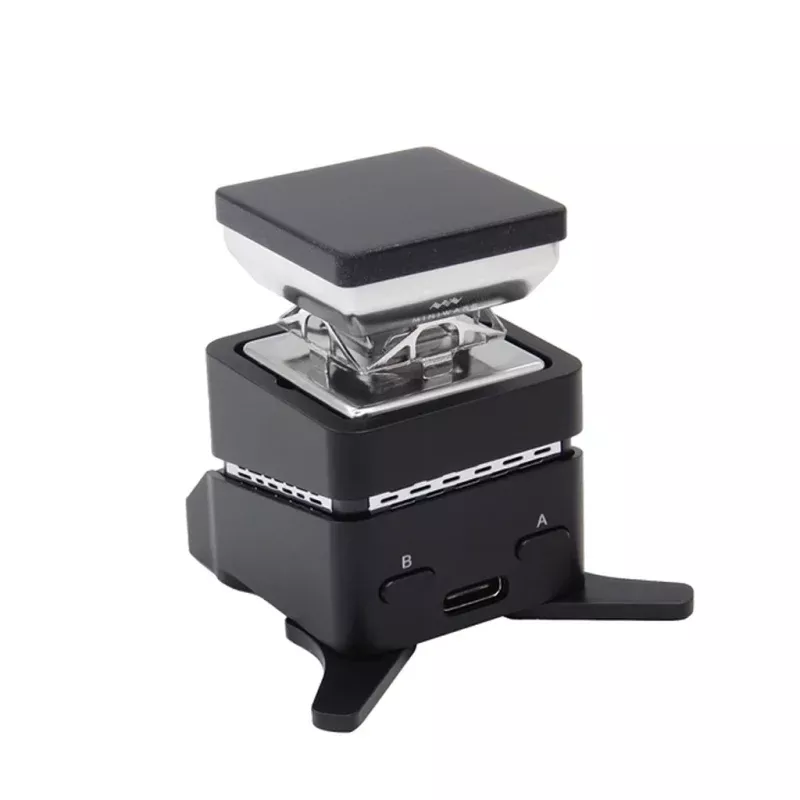

![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](https://www.goodfixhardwareus.com/wp-content/uploads/2026/09/open-box-miniware-60w-mini-hot-plate-preheater-soldering-station.webp)
Easy to Carry
MINIWARE MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate (heating station). It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time. MHP30 condenses the large desktop heating station into pocket size, and with popular PD power input, it makes possible for heating station to become a portable tool.
High Quality
The hot plate’s heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated. A futuristic stainless steel hollow bracket connects the heating part with the circuit board that can be directly inserted into the controller.
True Color LED
The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance.
Meet Your Needs
In addition to the upgradeable firmware function, MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep. Users can set to turn on or off these functions according to their needs.
Specifications:
Product Model
MHP30
Hot Plate Model
BS30
Heating Area
30mm*30mm
Temperature Range
100-350C (Support setting as Fahrenheit)
Temperature Stability
3%
Ground Resistance
<2
Power
60W (Max)
Power Input
PD input
Size
Controller: L43mm*W35mm*H31mm
Hot plate: L31mm*W31mm*H28mm
Weight (Controller + Hot plate)
82g
Smart Modes
Multi smart modes: preset temperature, tilt protection, power wake-up, automatic sleep, firmware upgrade
Package List: (MHP30)
1Hot Plate Preheater
1USB Cable
Package List: (MHP30M)
1Hot Plate Preheater
1USB Cable
1US Standard Adaptor
1EU Gauge Adapter
