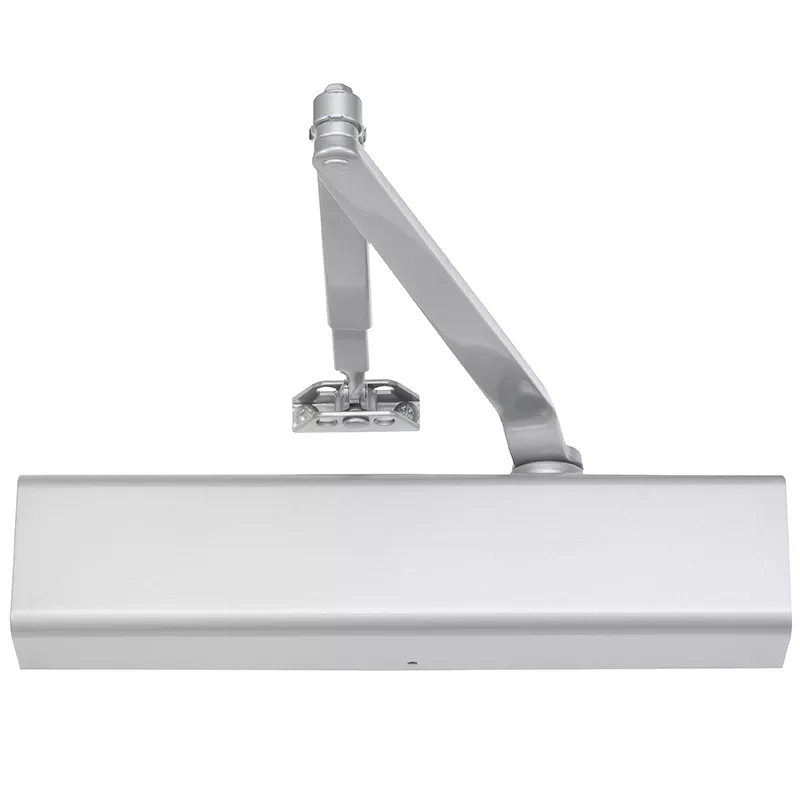

Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular, Grade 1, Tri-Packed, Adjustable Size 1 to 6, Plastic Cover, Non-Handed
The Norton 8501 Surface Mounted Door Closer is a Grade 1, Tri-Packed product that is adjustable from size 1 to 6. It has a Double Lever Arm Regular design and is suitable for both push or pull side installation. Additionally, it features a Plastic Cover and is Non-Handed.
Norton 8501 Series Closers
Architectural Tri-Style® door closer.
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today’s market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.
- Exceeds 15 million cycles (witnessed and verified by UL)
- Adjustable spring sizes 1 through 6
- Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum body
- Rack and pinion design
- 1-1/4″ (32mm) diameter piston
- 5/8″ (16mm) diameter pinion journals
- 2-1/8″ (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Metal, architectural plastic or architectural metal covers (8501 only)
- Lead lined metal cover – suffix MLL
- Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
- Slide Tracks: push or pull side mounting
- 25-year limited warranty
