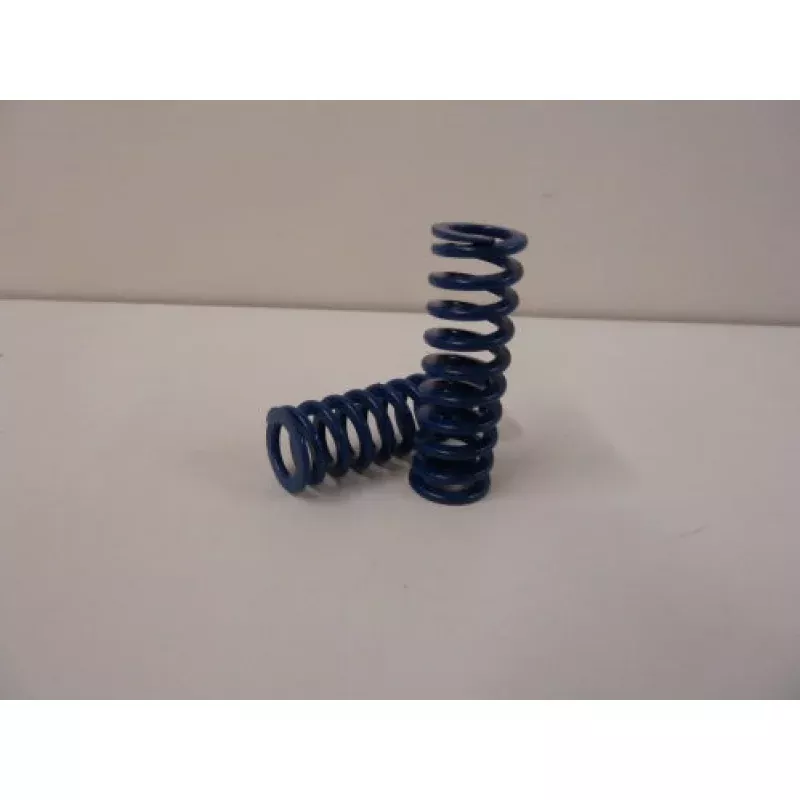

The MP23 follows industry standard sizing for medium-duty applications. According toDendoff SpringsandCutting Tool Pickers, the dimensions are as follows:
- Hole Diameter (OD):5/8″ (15.9 mm).
- Rod Diameter (ID):11/32″ (approx. 8.7 mm).
- Free Length:1-1/2″ (38.1 mm).
- Color Code:Blue (Medium Duty/Pressure).
- Spring Rate:Varies by manufacturer, but typically designed for an efficient operating range of 25% to 40% of its free length
