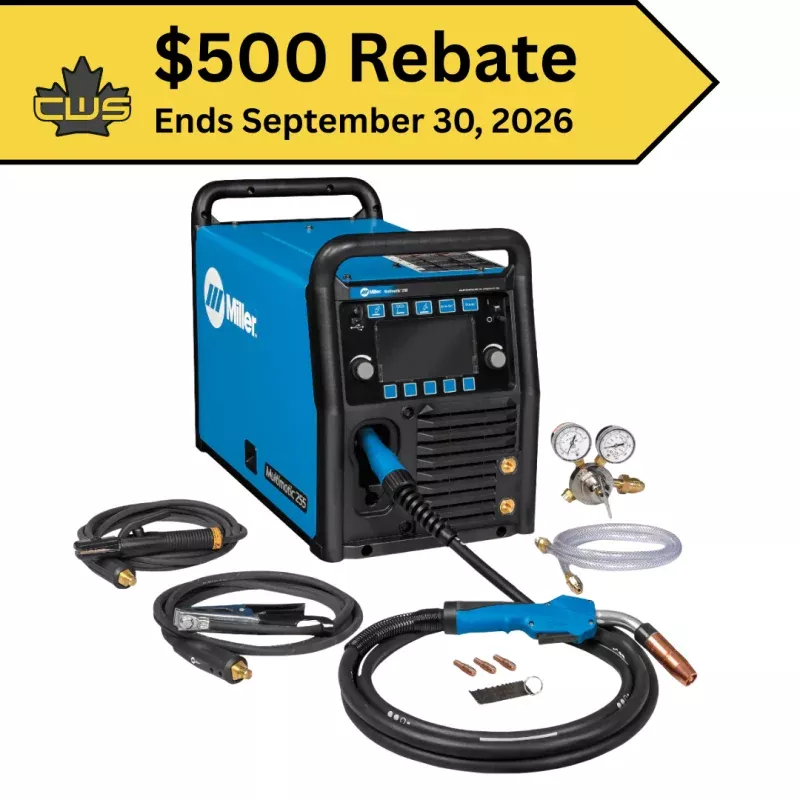

Miller Multimatic 255 Multiprocess Welding Machine

Multimatic 255 Multiprocess Welder

Built for professionalsin the MRO and lightmanufacturing/fabricationsegments who want a smaller, versatile welder with intuitivesetup to increase efficiencies and productivity. This 250-ampinverter multiprocess welder is easy to use, will deliver
versatility for faster uptime and performance, while allowingfor portability.

What’s Included

• Power source with 7 ft. (2.1 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX-250 MIG gun with AccuLock MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
• 10 ft. (3 m) cable with electrode holder and 50 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• 0.030/.035 in. (0.8/0.9 mm) reversible drive rolls
• EZ-Latch single-cylinder running gear
• Chain to secure gas cylinder
• Extra contact tips
• Material thickness gauge

Product Name Miller Multimatic 255 Welding Processes MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW) Input Voltage 208V – 575V, Single Phase Welding Output Amps (230V) MIG: 30 – 350A
TIG: 5 – 275A
Stick: 30 – 275A Output Current DC – CC/CV Aluminum TIG Spool GunReady – Spoolmate 150 Dimensions

H: 19.24 in. (489 mm)
W: 13.75 in. (349 mm)
D: 24.25 in. (616 mm)

Weight 63 lb Warranty Machine: 3-Year Parts & Labour, Torch: 90 Days Parts

Full Product Data Sheet | MultiMatic 255 User Manual | MDX Torch Consumables
