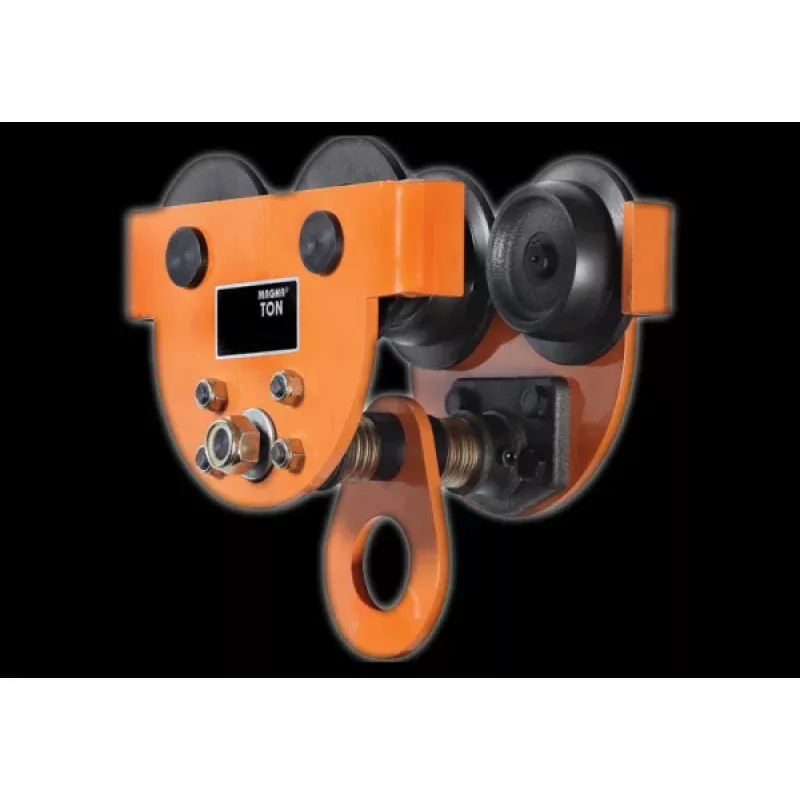

MAGNA 1/2 Ton Plain Trolley PTR050
The MAGNA PTR050 Plain Trolley provides a robust 1/2 Ton (1,100 lbs) anchor point for hoisting equipment, designed to traverse standard and wide-flange I-beams with ease. Constructed from heavy-duty steel, this push trolley is engineered for industrial environments where reliability and safety are paramount.
Featuring sealed ball-bearing wheels, the PTR050 ensures smooth, maintenance-free movement along the beam. Its versatile design allows for quick installation and adjustment using a simple washer and spacer system. Safety is built-in with standard anti-drop lugs and bumpers to protect the trolley and operator in the event of wheel failure or collision.
Features & Benefits
- Smooth Operation: Sealed ball-bearing wheels deliver low friction and maintenance-free performance.
- Universal Fit: Adjustable to fit I-beam flange widths from 3.0 to 8.0 inches.
- Safety First: Equipped with anti-drop lugs and bumpers for enhanced operational safety.
- Heavy-Duty Build: All-steel construction tested to 150% of rated capacity.
- Certified Quality: Meets or exceeds ANSI/ASME B30.11 standards.
Specifications
- Model Number: PTR050
- Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
- Trolley Type: Plain (Push)
- Fits Flange Width: 3.0 – 8.0 in.
- Minimum Radius Curve: 48 in.
- Headroom: 4.7 in.
- Net Weight: 17 lbs
