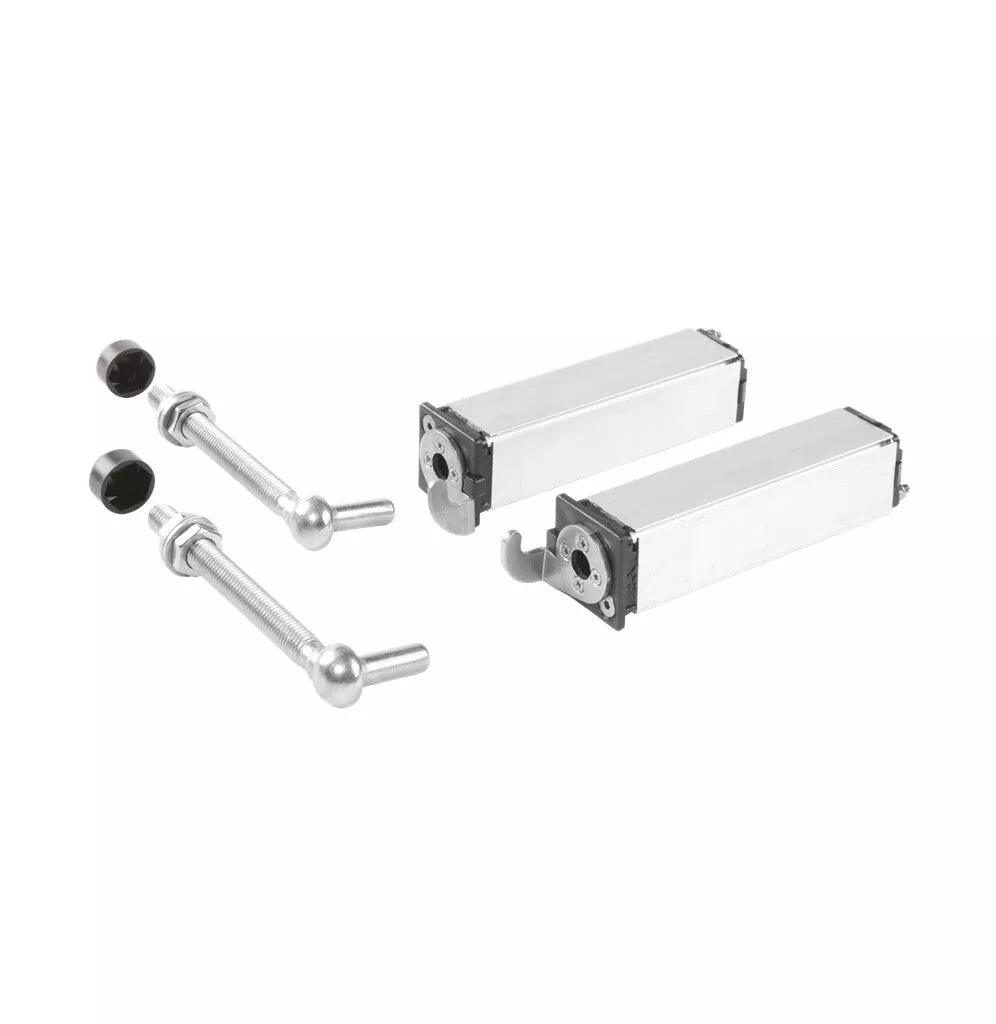

Adjustable spring hinges for garden and walk gates. The set can be fitted inside 1-1/2″, 16 Ga tubing. The SWING can easily be adjusted in strength from outside by means of an Allen key.
Specifications:
- One for the top, one for the bottom
- Installation: slides into top and bottom of gate frame
- Only for gate frames 1-1/2″ sq, 16 & 14 gauge
- Reversible: left or right hand
- Adjustable spring tension using 1/8″ allen wrench
- Maximum gate width: 51″
- Maximum weight: 165 lbs
- Maximum profile thickness: 5/64″
