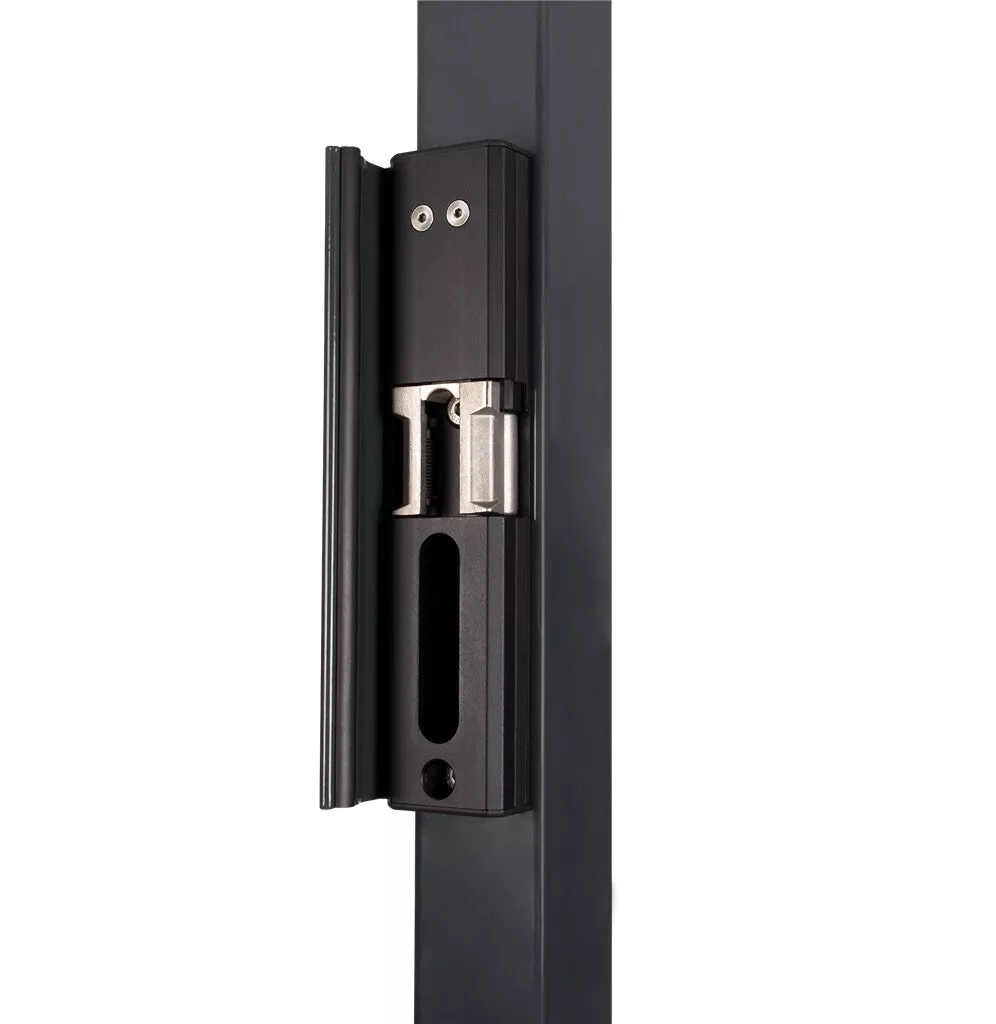

Electric Strike for surface mounted locks. Fast and easy installation thanks to the Quick-Fix. Easily interchangeable with the SA keep. Can be connected to both 12V – 24V and AC/DC. Modulec-SA is available in two versions: E (Emissa – Fail Close) and R (Ruptura – Fail Open).
Specifications:
- Tested up to 500 000 movements
- Fast and easy fixation with Quick-Fix bolts
- 660 lbs. holding force on the latch bolt
- Same drilling pattern as SA, SH and SM keeps
- Easy left or right hand changing
- Corrosion resistant: black anodized aluminum housing
- Adjustable for gate profiles: 1-9/16″ – 2-3/8″ depth
- Voltage: 12V-24V AC/DC
- Consumption: 12V – 1,25A / 24V – 0,62A
- Power: 15W
