A simple and straightforward jig that allows you to make strong and attractive through dovetails. With a workpiece width capacity of 12-7/8″, the TD330 Through Dovetail Jig is excellent for drawers and boxes. Compatible with most midsize routers (1.5HP to 2.25 HP) with a 1/2″ collet, and router tables with a 1-3/8″ counter bore insert ring.
Make through dovetails in multiple sizes, and on boards of different thicknesses. Few other dovetail jigs as simple as the TD330 offer a way to rout through dovetail joints this well. The jig is double-sided, with pin templates on one side and tail templates on the other. Joints can be fine tuned to a snug and precise fit with the supplied eccentric guide bushing, and their positioning can be adjusted with cams mounted on the jig.
The TD330 can accommodate boards up to 12-7/8″ wide and from an incredibly thin 1/8, up to a massive 13/16″ thick. The included 8 dovetail bit routs the tail board, first part of the through dovetail joint. The second part, or the pin board, is then routed with the included 1/2″ straight bit. The TD330 jig can be clamped to a board mounted in a vice on a workbench or on a portable workmate for stable and versatile work holding.
[TABS]
Features
- Make through dovetails using most 1/2″ collet routers
- Double-sided with pin templates on one side and tail templates on the other
- Suitable for stock 1/4″ to 13/16″ thick and 1-1/4″ to 12-3/8″ wide
- Can be clamped to router tables, workbenches, etc.
- Rotating side stops set the joint alignment on both the pins and tails side of jig

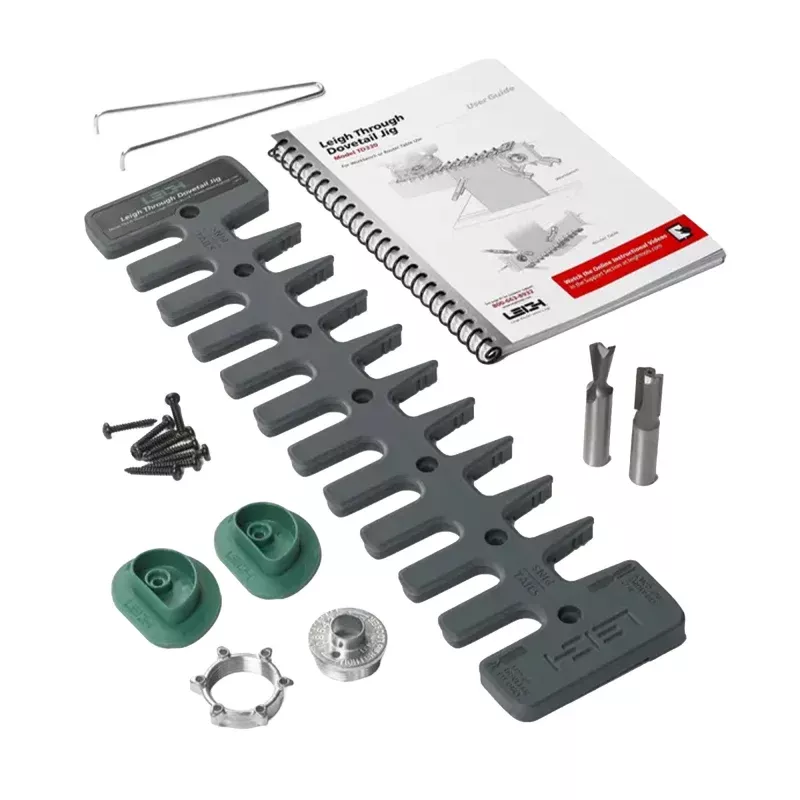

Includes
- Jig template
- (2) Side stops
- Straight bit – 1/2″ shank
- 8 dovetail bit – 1/2″ shank
- e10 Elliptical Guide Bushing
Video
