- 2D & 3D cutting
- 15.1″ touchscreen display
- 24″ x 48″ work area
- MDF inserts with T-slot clamping system
- Automatic tool touch-off
- Compatible with wood, plastics, foam, non-ferrous metals, and more

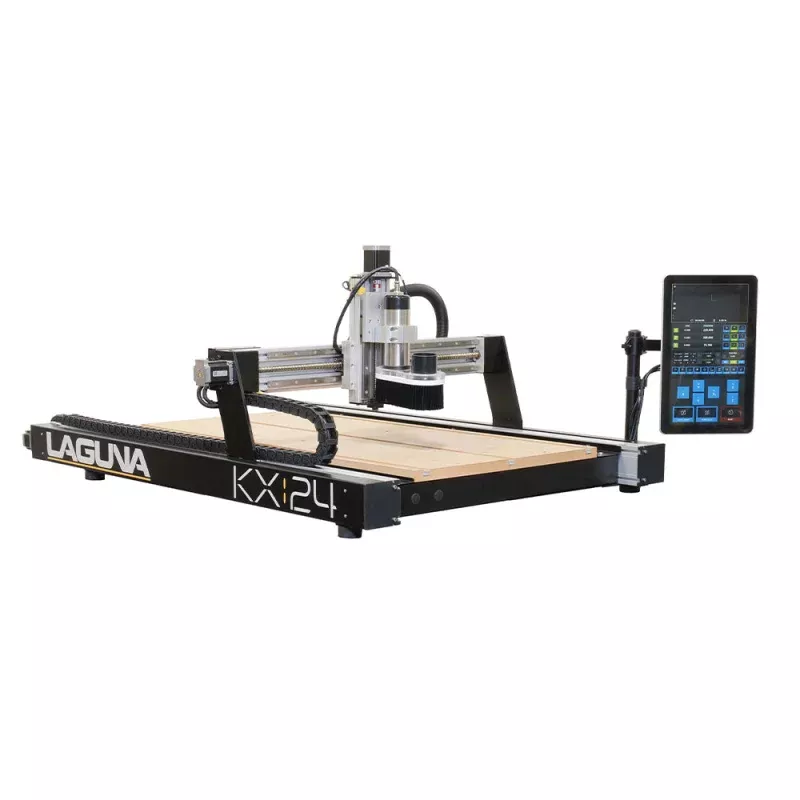

Designed to revolutionize your workshop with cutting-edge technology, the Laguna KX:24 is a CNC capable of handling a wide range of materials. Whether youre carving, shaping, or 3D cutting, the KX:24 handles every application seamlessly. Complete with a 15.1 touchscreen controller and an ultra-quiet CNC spindle, this machine is built for serious hobbyists and professionals who spend a lot of time creating signage, displays, furniture, and more.
The 24 x 48 work area provides ample space to handle a wide range of projects. Integrated T-slots and MDF spoil boards provide users with a wide range of hold-down options. A beautiful 15.1 touchscreen display removes limitations and provides a seamless graphical user interface (no computer required). Project files are easily imported via a USB drive.
Note: Does not include stand. You can purchase the stand separately in two different bundles: KX24B1 (Mobile Stand, Overhead Dust Kit, Dust Shoe, 2 Clamps) or KX24B2 (Mobile Stand, Overhead Dust Kit, Dust Shoe, 2 Clamps, VCarve Pro Software).
[TABS]
Features
- Compatible with multiple materials: Easily machine wood, plastics, foam, non-ferrous metals, and more for versatile applications.
- 2D & 3D cutting, carving, and shaping: Achieve intricate designs and complex projects with precision and efficiency.
- 24 x 48 work area: Provides ample workspace to handle a wide range of projects, from small to large-scale.
- MDF inserts with T-slot clamping system: Secure materials efficiently with the ability to replace inserts, extending the tables lifespan.
- Ultra-quiet spindle: Offers powerful performance with reduced noise for a quieter, more comfortable work environment.
- 15.1″ touchscreen with graphical user interface: Simplifies machine control, making it intuitive and easy to use for operators of any skill level.
- Automatic tool touch-off: Ensures precise bit setting for every job, increasing accuracy and reducing errors.
Specs
X axis travel: 24″ (610mm)
Y axis travel: 48″ (1,210mm)
Z axis travel: 5.5″ (140mm)
Work table area: 24″ x 48″ (610 x 1,219mm)
Collet (ER-11) size: 1/4″ & 1/8″
Spindle motor: 1hp (800W), electro air cooled
Spindle speed: 0~24,000 RPM
Gantry clearance: 6.5″ (165mm)
Power requirements: 110V, 60Hz, 15A, Single-Phase
Machine dimensions (L x W x H): 61.25″ x 40″ x 24.8″ (1,555 x 1,020 x 630mm)
Net weight: 179.3 lbs. (81kg)
Gross weight: 232.6 lbs. (105.5kg)
Recommended working area (L x W): 108″ x 96″ (2,743 x 2,439mm)
Includes
- (2) ER-11 Collets
- (1) Tool touch-off puck
Video
[/TABS]
