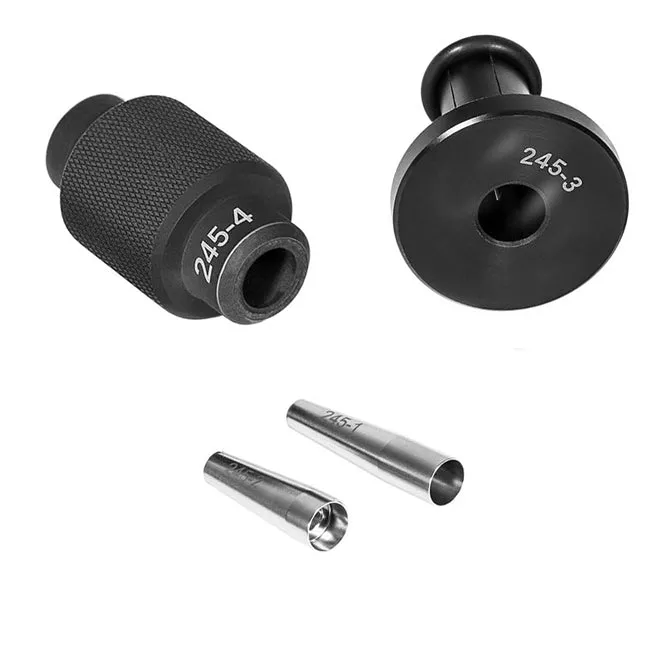

Kent-Moore EN-49245 Injector Seal Installer & Sizer Adapters
Ensure replacement injectors and seals are installed correctly. This kit installs the dual seals onto the end of the injector. These seals must be installed into their grooves, and then sized to the engineered dimension before the injectors are installed into their bores in the cylinder head. Kit includes: two seal installation pilots for each groove, a seal installer driver, and a compression sizer.
Applications include 2010-later GM engines found in many Buick, Cadillac, Chevrolet and GMC vehicles:
- 1.4L
- 1.5L
- 2.0L
- 2.4L
- 2.5L
- 3.0L
- 3.6L
- 4.3L
- 5.3L
- 6.2L
Note: Some 2014-Later injectors have larger injector tips which require EN-51105 Injector Seal Installer Adapters.
