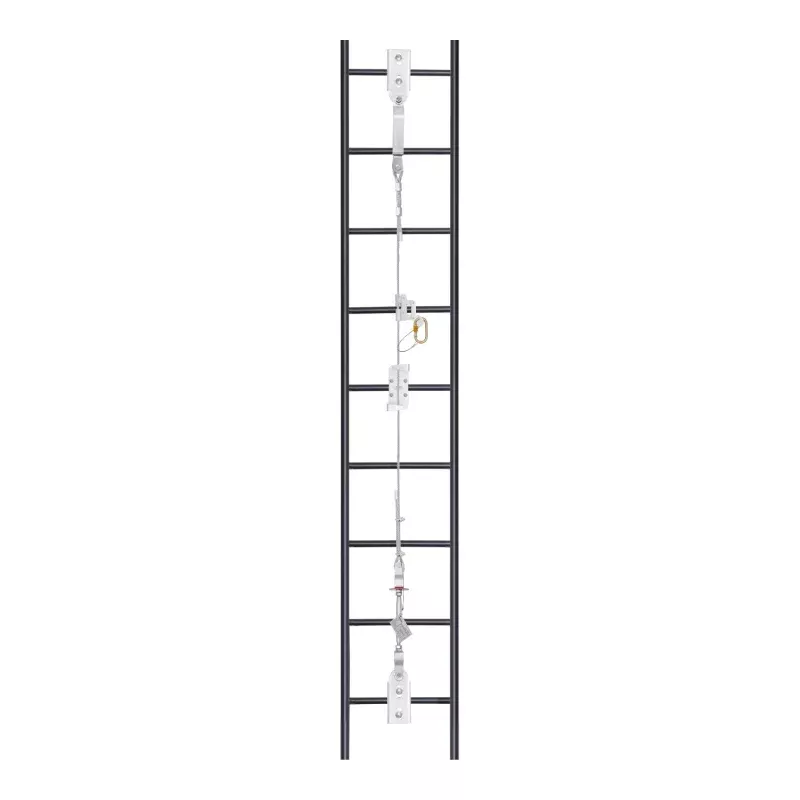

KStrong 30′ Ladder Climbing Cable System for Fixed Ladders USCLC030
The KStrong Ladder Climbing Cable System for Fixed Ladders is a vertical fall-arrest solution that protects users ascending and descending fixed ladders. It features a permanently installed stainless steel shock absorber at the top for superior UV and climate resistance, a stainless steel rope grab that travels with the user and locks on fall, and a screw-type mechanical tensioner with visual indicator to maintain proper tension. The 316 stainless steel wire rope is held rigid by top and bottom mounting brackets and intermediate supports. This model has a 30 ft. cable length.
Key Features
- Permanently installed stainless steel shock absorber for durability and UV resistance (Ref: UFF512000).
- Stainless steel rope grab (Ref: UFG602050) locks instantly on fall.
- Screw-type mechanical tensioner with tension indicator to maintain line tension (Ref: UFF514000).
- Top & bottom mounting brackets keep the line rigid (Ref: UFF511000).
- Intermediate bracket recommended every 32.8 ft. (10 m) for alignment (Ref: UFF511500).
- Termination hardware includes set of 2 U-bolts & 1 thimble (Ref: UFF513000) and wire rope cap (Ref: UFF513100).
System Strength
Greater than 15 kN (3372 lbf).
Parts Specification
- Model: USCLC03030 ft.
- Cable: 316 stainless steel wire rope, 0.31 in. (8 mm).
Downloads
- Techsheet
- Manual
