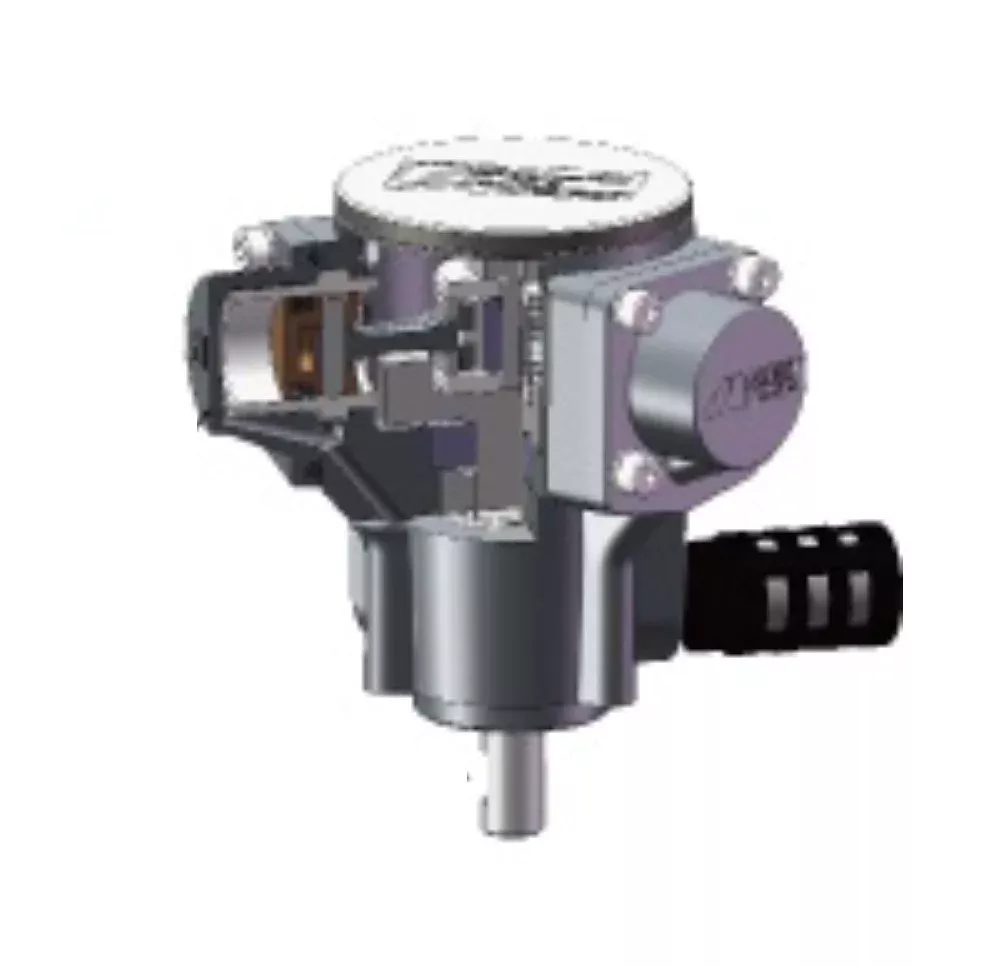

8160B AM AM6B AIR MOTOR REPLACE 8160
ANEST IWATA’s agitators of the Mazeco Series, which employ a radial piston air motor, have the following features when compared to the conventional vane air motors.
- The motor can rotate at low speeds without a reducer.
- Since the motor does not have a reducer, its structure is simple (consumable parts are fewer).
- The rotation speed rarely changes (speed is stable).
- Air consumption is reduced significantly (huge energy savings).
The medium-size air motor AM-6B selected as appropriate for the paint to be agitated and the facilities to be used.
ANEST IWATA’s radial piston air motors all use industrial Vaseline as a lubricant. Since exhaust air contains no extra oil mist, they help improve the coating environment.
| Air Motor Model | AM-6B |
| Size | Medium |
| Fluid Used | Air |
| Rated Air Pressure | 73 PSI |
| Operating Air Pressure Range | 15 to 73 PSI |
| Operating Environmental Temperature Range | 5 to 40°C |
| Air Consumption | 100L/min |
| Rotation Speed 250 min-1 (rpm): Air Consumption | 70L/min |
| Air Inlet/Outlet Screw Diameter | Rc1/4” |
| Muffler | Accessory |
| Mass | 2.86lbs |
