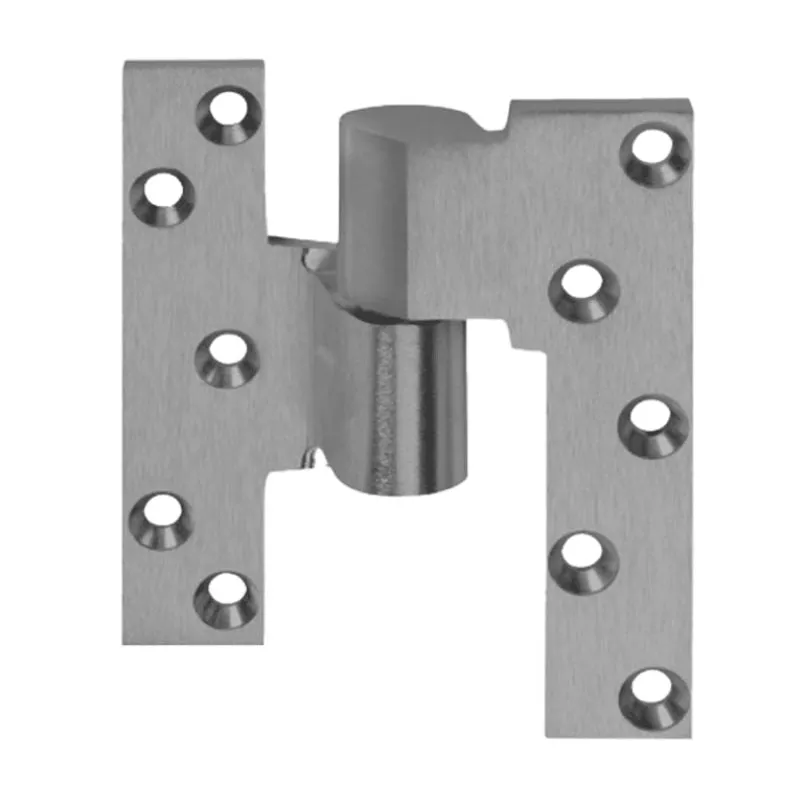

Ives 7226 Intermediate Pivot, 3/4″ Offset, 600lb with top header mount and bottom base mount
- Maximum door load 600 pounds
- Recommended for use with 1-3/4″ minimum door thickness, with 1/8″ bevel in 2″
- Vertical adjustment range 3/16″, with positive locking
- Handed LH or RH
Certifications
- Meets ANSI/BHMA A156.4 C07162
- UL Listed, 20-minute fire doors
