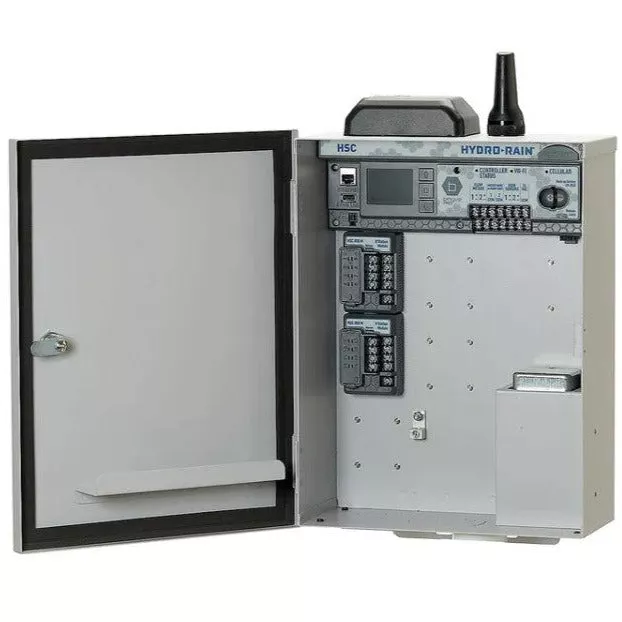

Powered by B-hyve Pro to provide a flexible controller in residential, commercial, and municipal projects. With built-in Bluetooth, Wi-Fi, Ethernet, and support for up to 48 stations.
The High Station Count (HSC) commercial irrigation controller brings a range of connectivity to B-hyve, the 1 irrigation platform in the world. The HSC provides WeatherSense programming with remote monitoring and control for projects large and small.
The HSC and B-hyve can provide water managers with total control over programming whether they want fully automatic daily adjustments with WeatherSense programming, traditional programming, or somewhere in between. The HSC can control up to 48 stations and power two stations simultaneously. The convenient modular design allows for station expansion in 8-station increments.
HSC Features and Benefits
- Built-in Wi-Fi (2.4 GHz and 5 GHz), Bluetooth, and Ethernet for easy connectivity
- Optional cellular module (sold separately) allows for remote operation when a local area network is not available
- The large full-color display provides vital information at the device
- Two Master valve/pump circuits ensure you have the hydraulic control you need.
- Non-Volatile memory stores programming for watering after a power outage
- Manual watering by program or station, so you only water the areas you want
- Master valve/pump on/off by station for greater control over watering
B-hyve Features and Benefits
- WeatherSense programming can issue daily programming adjustments, which can provide up to 30% in water savings
- Built-in irrigation audit allows for faster system audits and improved water savings
- Delay Watering up to 32 days, perfect for large events or big storms
- Seasonally adjust irrigation by program with “Watering Budget” to optimize irrigation without altering the original program.
| B-HYVE CONNECTED DEVICE |
Yes |
|---|---|
| BLUETOOTH COMPATIBILITY |
5 |
| BLUETOOTH RANGE |
150 Feet |
| CABLE/WIRE TYPE |
12 AWG |
| CERTIFICATIONS |
EPA WaterSense, FCC, IP 68, UL |
| EPA WATERSENSE APPROVED |
Yes |
| HUB INCLUDED |
Built in |
| MOUNTING LOCATION |
Outdoor |
| P/MV OUTPUT (24 VAC) |
0.32 A |
| PROGRAMMING SCHEDULE |
Days of week, watering intervals, odd/even days, Smart |
| PUMP START RELAY |
2 Terminal |
| SMART / WEB ACCESS |
B-hyve Pro or B-hyve |
| SMART HOME COMPATIBILITY |
Alexa, Google |
| SOLENOID HOLDING CURRENT |
0.56 A @ 24 VAC |
| STATION COUNT |
16 |
| STATION OUTPUT (24 VAC) |
0.56 A |
| TRANSFORMER INPUT |
100-240 V AC |
| TRANSFORMER OUTPUT |
3.3 A |
| WI-FI BANDWIDTH |
2.4 GHz, 5 GHz |
| WI-FI RANGE |
2.4 GHz – 60 to 820 ft, 5 GHz – 190 to 460 ft |
Specs
B-HYVE CONNECTED DEVICE
Yes
BLUETOOTH COMPATIBILITY
5
BLUETOOTH RANGE
150 Feet
CABLE/WIRE TYPE
12 AWG
CERTIFICATIONS
EPA WaterSense, FCC, IP 68, UL
EPA WATERSENSE APPROVED
Yes
HUB INCLUDED
Built in
MOUNTING LOCATION
Outdoor
P/MV OUTPUT (24 VAC)
0.32 A
PROGRAMMING SCHEDULE
Days of week, watering intervals, odd/even days, Smart
PUMP START RELAY
2 Terminal
SMART / WEB ACCESS
B-hyve Pro or B-hyve
SMART HOME COMPATIBILITY
Alexa, Google
SOLENOID HOLDING CURRENT
0.56 A @ 24 VAC
STATION COUNT
16
STATION OUTPUT (24 VAC)
0.56 A
TRANSFORMER INPUT
100-240 V AC
TRANSFORMER OUTPUT
3.3 A
WI-FI BANDWIDTH
2.4 GHz, 5 GHz
WI-FI RANGE
2.4 GHz – 60 to 820 ft, 5 GHz – 190 to 460 ft
