HiTorque 7650 9×20 Deluxe Bench Lathe and Tooling Package

Original price was: $737.82.Current price is: $523.23.

Sale!
SKU: 6717 Category:
  • All the essentials for a bench lathe setup
  • Save hundreds of dollars with bundled pricing and shipping
  • Includes the HiTorque deluxe 9×20 bench lathe with upgraded features
  • Includes standard tooling package

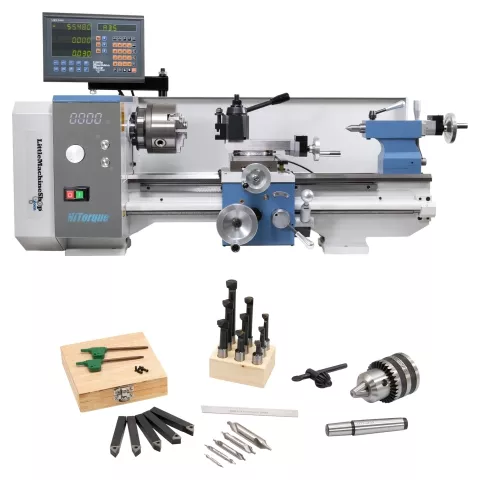

HiTorque Deluxe Bench Lathe, Tooling Package, and stand cabinet. This package includes the 7650 HiTorque Deluxe Bench Lathe and the 3164 Lathe Tooling Package.

The deluxe lathe includes:

•Digital readouts (DRO) on the compound rest, cross slide, carriage, and tailstock

•AXA quick change tool post set with five tool holders

•anodized aluminum hand wheels and aluminum knobs and levers

•Heavy duty splash guard

Standard Bench lathe features include:

•1000 Watt brushless spindle drive motor for tremendous low-end torque.

•Variable speed from 100 rpm to 2000 rpm continuously in both directions

•NEW LED control panel allows you to stop and then restart the lathe at a pre-selected speed.

•A power cross feed

•Cross feed and compound rest dials are graduated in 0.001″ and advance 0.050″ per turn.

•A reversible 2 mm pitch lead screw.

•All the gears on this lathe are metal.

The 3164 tooling package comes equipped with a 2MT arbor for the tailstock, a boring bar set, center drills, cut-off blade, 1/2″ drill chuck and a set of turning tools with indexable inserts.

*NOTE* We ship machines only to the US and Canada.

Specifications

Swing Over Bed 9.1″ (230 mm)
Distance Between Centers 18.1″ (460 mm)
Cross Slide Travel 4.7″ (120 mm)
Swing Over Cross Slide 4.3″ (110 mm)
Spindle Through Hole 1.1″ (28 mm)
Spindle Taper 4 Morse taper
Tailstock Taper 2 Morse taper
Range of Threads 6-80 TPI; 0.25-4.0 mm
Spindle Motor Output 1.34 hp (1000 Watts)
Spindle Speed 100 – 2000 RPM
Power Requirements 120 V 60 Hz 15 Amps
Machine Weight 264 lbs (120 kg)
Crated Weight 326 lbs (148 kg)
Overall Dimensions (W x D x H) 36″ x 25″ x 18″ (910 mm x 630 mm x 450 mm)
Crate Dimensions (W x D x H) 42″ x 31″ x 24″ (1060 mm x 780 mm x 600 mm)
