HiTorque 7600 9×20 Bench Lathe and Tooling Package

Original price was: $602.82.Current price is: $423.15.

Sale!
SKU: 6716 Category:
  • All the essentials for a bench lathe setup
  • Save hundreds of dollars with bundled pricing and shipping
  • Includes the HiTorque 9×20 bench lathe, with upgraded features
  • Includes standard tooling package
  • Includes an upgraded compound rest and AXA tool post

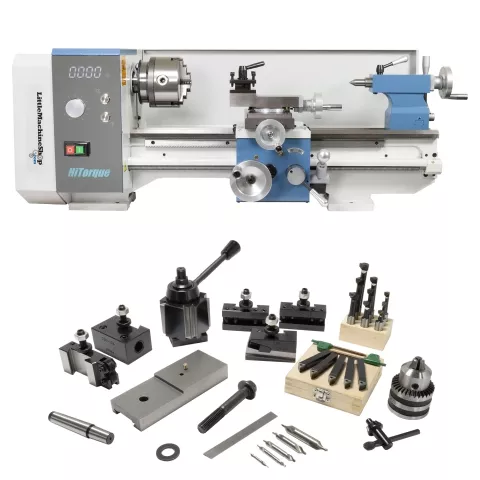

This package includes the 7600 HiTorque Deluxe Bench Lathe and the 6718 Lathe Tooling Package.

Standard Bench lathe features include:

•1000 Watt brushless spindle drive motor for tremendous low-end torque.

•Variable speed from 100 rpm to 2000 rpm continuously in both directions

•NEW LED control panel allows you to stop and then restart the lathe at a pre-selected speed.

•A power cross feed

•Cross feed and compound rest dials are graduated in 0.001″ and advance 0.050″ per turn.

•A reversible 2 mm pitch lead screw.

•All the gears on this lathe are metal.

The 6718 tooling package comes with a new compound to accept and AXA tool post and 5 tool holders. It is also equipped with a 2MT arbor for the tailstock, a boring bar set, center drills, cut-off blade, 1/2″ drill chuck and a set of turning tools with indexable inserts.

*NOTE* We ship machines only to the US and Canada.

Specifications

Swing Over Bed 9″ (230 mm)
Distance Between Centers 18.1″ (460 mm)
Cross Slide Travel 4.7″ (120 mm)
Swing Over Cross Slide 4.3″ (110 mm)
Spindle Through Hole 1.1″ (28 mm)
Spindle Taper 4 Morse taper
Tailstock Taper 2 Morse taper
Range of Threads 6-80 TPI; 0.25-4.0 mm
Spindle Motor Output 1.34 hp (1000 Watts)
Spindle Speed 100 – 2000 RPM
Power Requirements 120 V 60 Hz 15 Amps
Machine Weight 253 lbs (115 kg)
Crated Weight 315 lbs (143 kg)
Overall Dimensions (W x D x H) 36″ x 25″ x 18″ (910 mm x 630 mm x 450 mm)
Crate Dimensions (W x D x H) 42″ x 31″ x 24″ (1060 mm x 780 mm x 600 mm)
