The compact, high performance electric strike designed for fire-rated openings with cylindrical locksets where there is limited space behind the jamb.

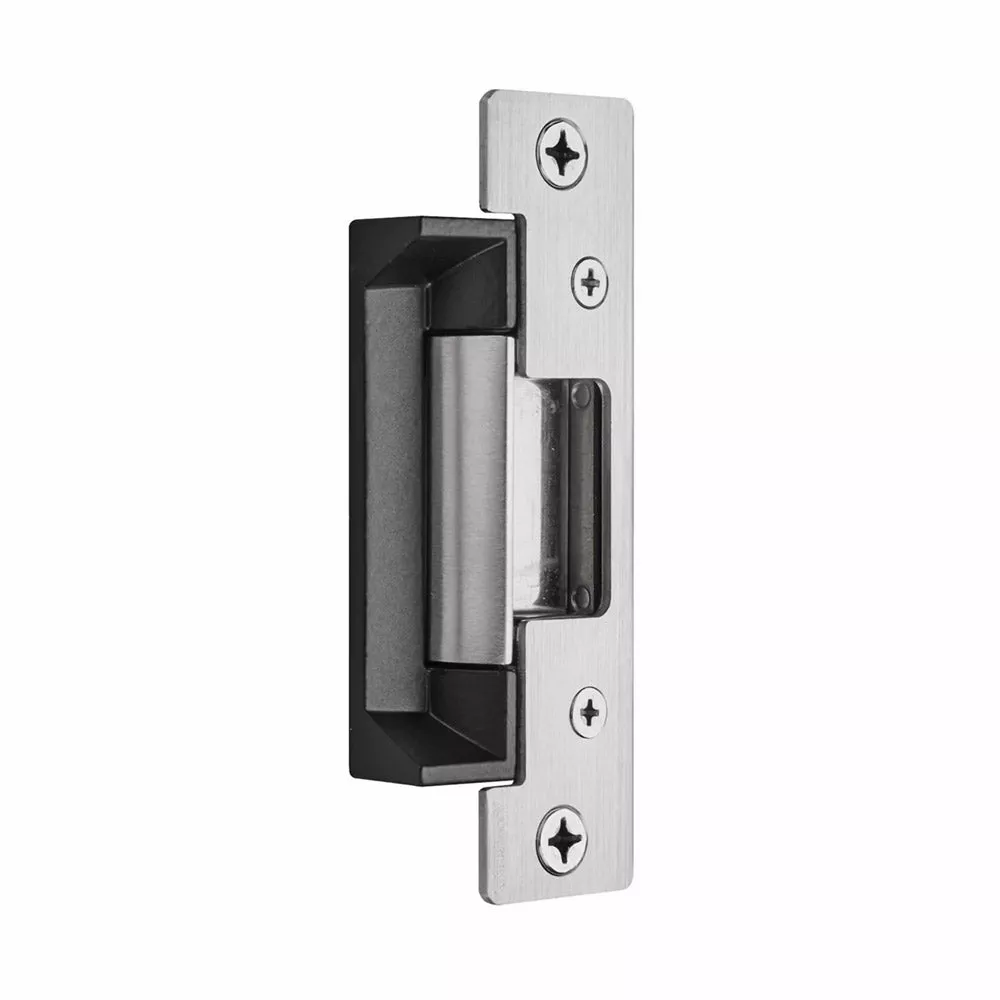

The HES 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8″ throw.
Product Features
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail secure/ fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2″ – 5/8″ latchbolt (5/8″ with 1/8″ door gap)
- Strike body depth 1-1/16″
- Plug-in connector
- Trim enhancer included
- Dual voltage 12 or 24 VDC/VAC
