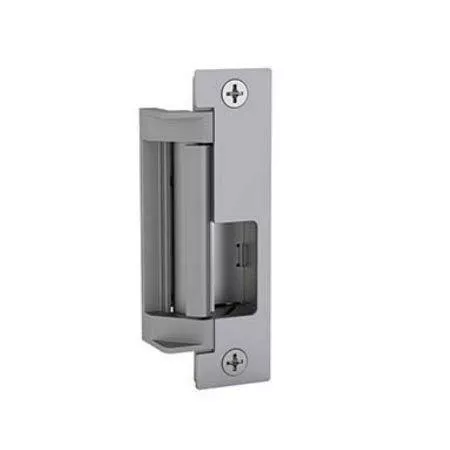

HES 4500 Series –HES Electric Strike
The4500 Series is the first electric strike designed for installation in 2″ UL 10C fire-rated frames with½” drywall penetration. The 4500 electric strike features a low profile 1-3/8″ depth, heavy-duty cast stainless steel construction and two interchangeable faceplates designed to accommodate a variety of locksets for simple installation. Its strength is derived from a unique keeper pin locking design, enabling the 4500 to exceed the ratings of the frame, door and locking hardware. Designed for use with cylindrical and mortise locksets up to a 3/4″ throw.
HES 4500 Series Functions
FailSecure (Power-to-Unlock):Unlocked when energized. Locked when de-energized and during power failure.
FailSafe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
Features and Benefits:
– Stainless steel construction.
– Tamper resistant.
– Static strength 3000 lbs.
– Dynamic strength100 ft.-lbs.
–Endurance 1,000,000 cycles.
– Field selectable fail safe/fail secure.
– Dual voltage 12 or 24 VAC/VDC.
– Two faceplates provided to accommodate a variety of locksets.
– Non-handed.
– Internally mounted solenoid.
– Accommodates up to a 3/4″ latch bolt.
– Strike body depth 1-3/8″.
– Plug-in connector.
– Trim enhancer.
– Full keeper shims for horizontal adjustment.
– Frame application: Metal &Wood.
– Available in Satin Stainless Steel (630), Brass(605), Satin Brass (606), Satin Bronze (612), Bronze Toned (613) &Bright Stainless Steel (629) finish.
Specification Data:
– UL10C fire-rated, 3 hour (fail secure only).
– UL 1034, burglary-resistant listed.
–ANSI/BHMA A156.31,Grade 1.
Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
