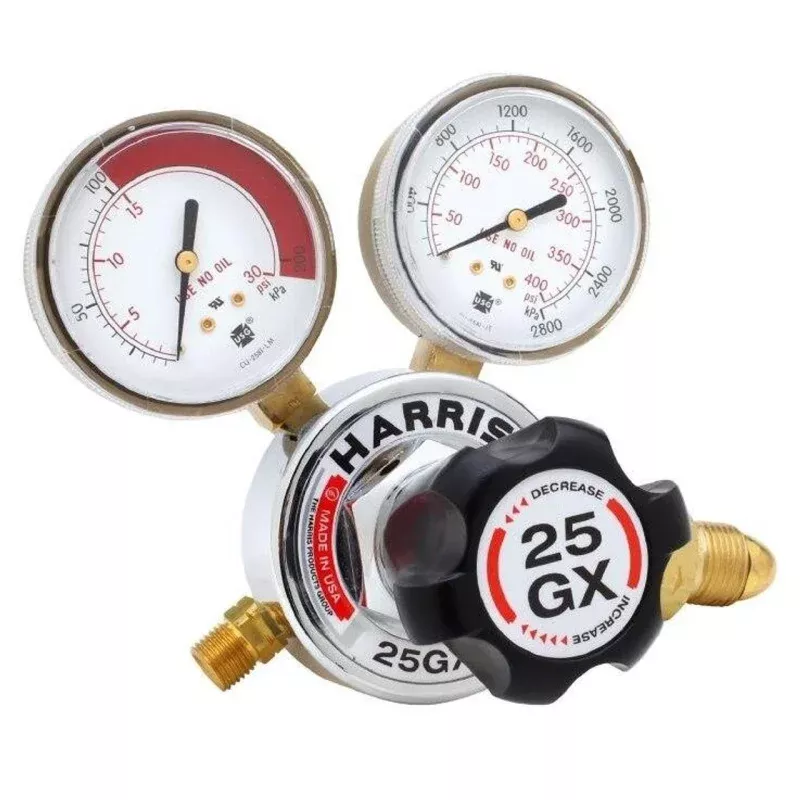

Harris 25GX-15-510 Acetylene Regulator
Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.
Features
- High end features for economical price
- Workhorse of Harris industrial regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and chrome-plated zinc bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2.5″ Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed/CGA E-4
- Featured In:SteelworkerClassic & V-Serieskits
- Weight:2.9 lbs./1.32 kg
- Part Number 3000380 / 3000682
25GX-15-510 Specifications
- Max Inlet Pressure: 500 psi.
- Outlet Pressure: 0-15 psi
- Inlet Connection: CGA 510
- Outlet Connection: 916″ – 18 LH
