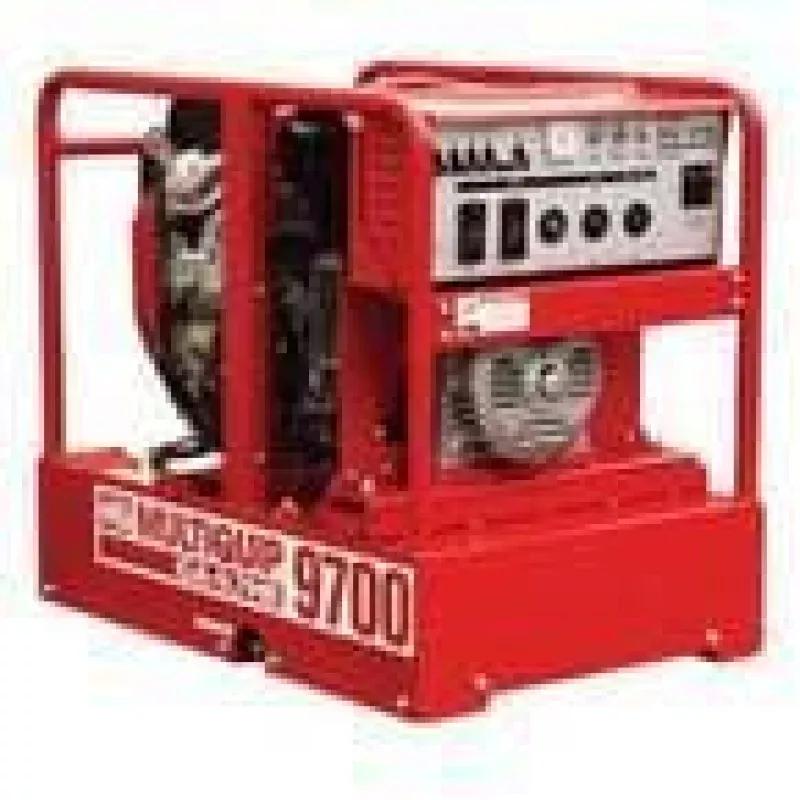

GA97HEA Portable Generator

GA97HEA Portable Generator is powered by a twin-cylinder engine with electric start, it offers up to 10 hours of continuous run time

9.7kW, 120/240V, Honda, Electric Start

The generator for the toughest jobs. This delivers enough power to run a variety of tools and equipment. Powered by a twin-cylinder engine with electric start, it offers up to 10 hours of continuous run time.

• Twin duplex receptacles and three twist-lock receptacles for job site versatility
• 100% copper windings for maximum conductivity
• Alternator design eliminates maintenance by removing brushes and slip rings
• Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
• Includes folding lifting bale as standard equipment
• Powered by a twin-cylinder Honda GX630 engine with low-oil shutdown, automatic idle control
• Full panel GFCI protection – OSHA and NEC compliant

Unit Specifications Alternator Design Brushless Frequency 60 hz Phase Single Phase Voltage 120/240 V Sound level at 30 ft 79 dBA Fuel Tank Capacity 10 gal 37.8 L Power Generation Maximum Continuous Watts 9700 W 8400 W Amps at 120V 80.8 A 70 A Amps at 240V 40.4 A 35 A Receptacles & Circuit Breakers Main Circuit Breaker 40 A Number of Poles 2 1 Receptacle of Each: 5-20R 125V GFCI 20A
L5-20R 125V T-Lock 20A
L5-30R 125V T-Lock 30A
L14-30R 125/250V T-Lock 30A Dimensions & Weights Overall Length 31.25 in 800 mm Overall Width 21.25 in 540 mm Overall Height 27.5 in 700 mm Shipping Dimensions 32 x 22.5 x 31.5 in
81 x 56 x 91 mm Operating Weight 402.73 lb 182.67 kg Shipping Weight 342 lb 155 kg Engine Specifications Engine Make/Model Honda GX-630 Start Method Electric Engine Power 16.6 HP 12.4 kW Engine RPM 3600 Fuel Type Gasoline

Notice: Features and equipment specifications are subject to change without notice.
