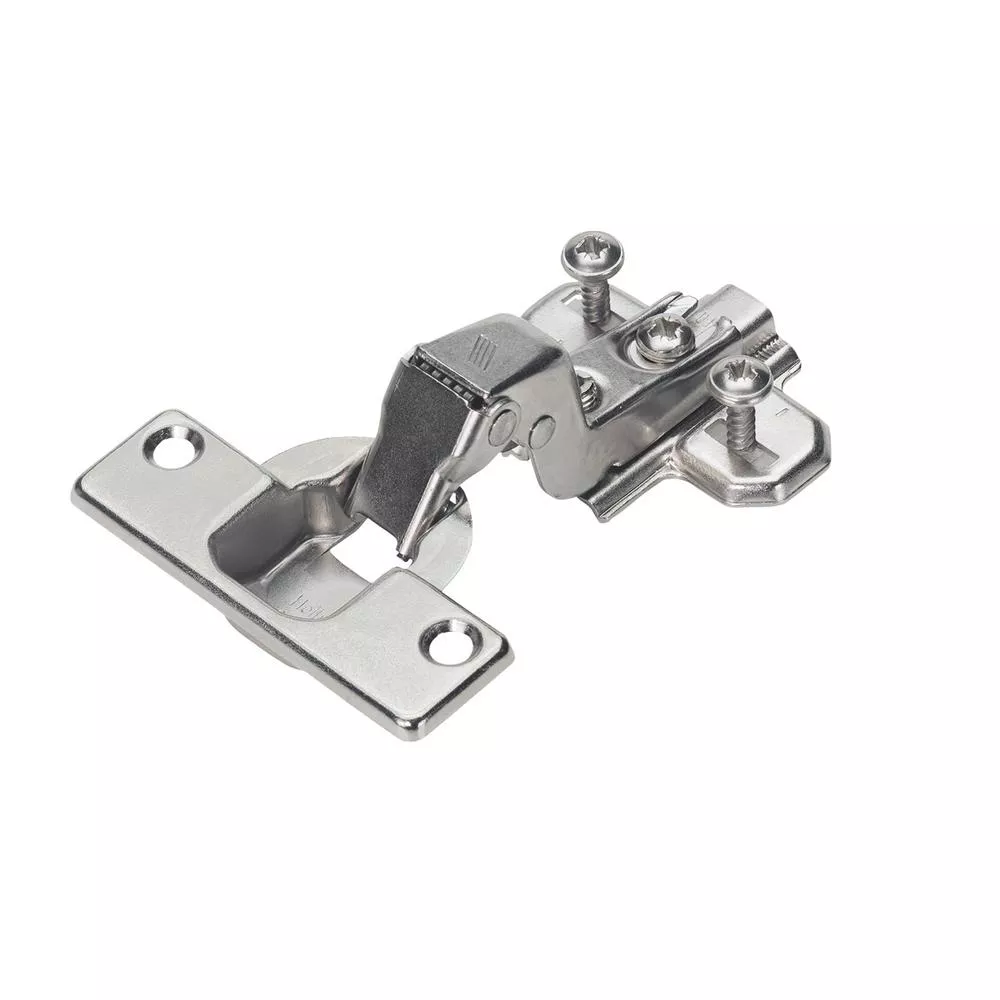

This durable, reliable concealed cup hinge is for standard cabinets with an opening angle of 95°. The useful and simple slide-on assembly and the screw-on cup provide a safe fitting for furniture doors in cabinets and wardrobes. The hinges can be used for frameless furniture applications and for an inset door position only. • Product Specs:• Opening angle 95 • Cup diameter 35mm / 1.37 in. • Cup depth 11.1 mm / 0.43 in. • Integrated overlay adjustment + 0.5 mm / – 2.5 mm • Integrated depth adjustment + 2 mm / – 2 mm • Height adjustment at mounting plate • Made in Germany • Package Includes:
- 2 – Hinges
- 2 Mounting Plates with screws inserted
- 2 – 5/8 in. Cup Screws
- 2 – Cup Covers
- 2 – Hinge Covers
- Height adjustment at mounting plate
- Made in Germany
- For inset doors
Features
| Item Weight | 0.287 |
| Hardware Finish Family | Nickel |
| Cabinet Frame Type | Frameless |
| Features | No Additional Features |
| Material | Steel |
| Hinge Type | Inset |
| Finish | Nickel plated |
| Package Quantity | 2 |
| Hinge Opening (Degrees) | 95 |
| Returnable | 180-Day |
| Builders Hardware Product Type | Cabinet hinge |
| Number of Holes | 2 |
| Product Depth (in.) | 3.74 in |
| Product Height (in.) | 1.14 in |
| Product Width (in.) | 2.6 in |
| Manufacturer Warranty | Limited Lifetime Warranty |
