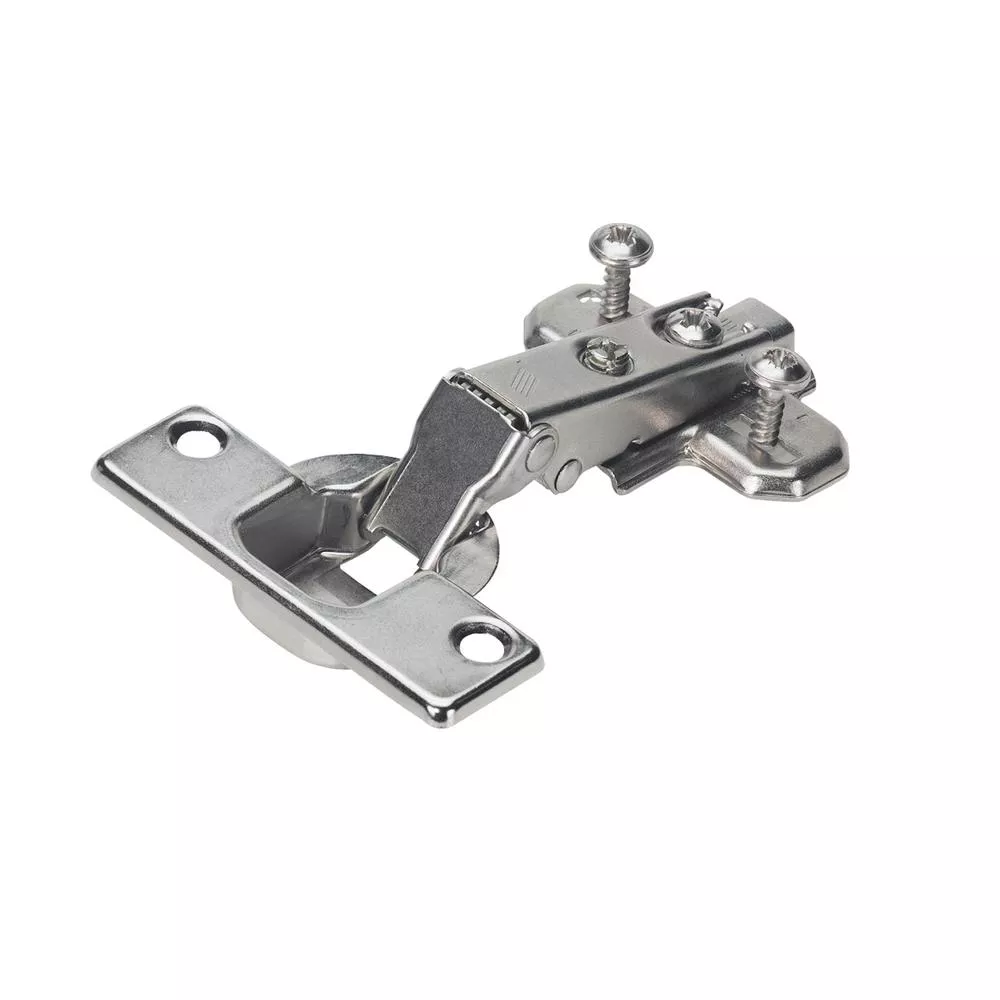

This durable, reliable concealed cup hinge is for standard cabinets with an opening angle of 95°. The useful and simple slide-on assembly and the screw-on cup provide a safe fitting for furniture doors in cabinets and wardrobes. The hinges can be used for frameless furniture applications and for a full overlay door position only. Product Includes 2 Hinges and all mounting hardware needed.
- California residentssee Prop 65 WARNINGS
- Opening angle 95°
- Cup diameter 35mm / 1.37 in.
- Cup depth 11.1 mm / 0.43 in.
- Integrated overlay adjustment + 0.5 mm / – 2.5 mm
- Integrated depth adjustment + 2 mm / – 2 mm
- Height adjustment at mounting plate
- Made in Germany
Features
| Item Weight | 0.309 |
| Hinge Type | Full overlay |
| Hardware Finish Family | Nickel |
| Cabinet Frame Type | Frameless |
| Features | No Additional Features |
| Material | Steel |
| Package Quantity | 2 |
| Hinge Opening (Degrees) | 95 |
| Returnable | 180-Day |
| Builders Hardware Product Type | Cabinet hinge |
| Number of Holes | 2 |
| Finish | Nickel Plated |
| Product Depth (in.) | 3.74 in |
| Product Height (in.) | 1.14 in |
| Product Width (in.) | 2.6 in |
| Manufacturer Warranty | Limited Lifetime Warranty |
