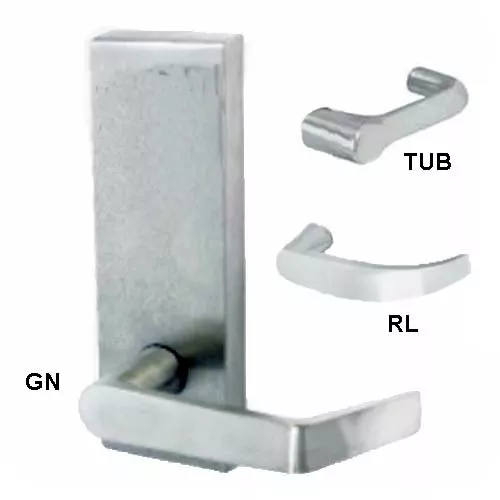

ESC6630 Cal-Royal Exit Device Trim Passage – Passage, always operable and free. ANSI Function 14
More Exit Trim Choices below in, (Related Products)
Consturction:
Non-Ferrous Alloy Material
Clutch Mechanism
Double heavy duty spring support to prevent sagging and enhance operation
Grade 1, thru-bolted design. Non-handed design. Easily field reversible
Hardened steel heavy duty spindle. Available for fire and non-fire rated rim and vertical rod exit devices
Door Thickness:
Standard 1 3/4” For 2 1/4” thick door use additional part TAIL3
Escutcheon dimensions:
2 3/4” width X 8 7/16” length. Lever length: 4 9/16”. Fits and
covers 2 1/8” 161 cutout
