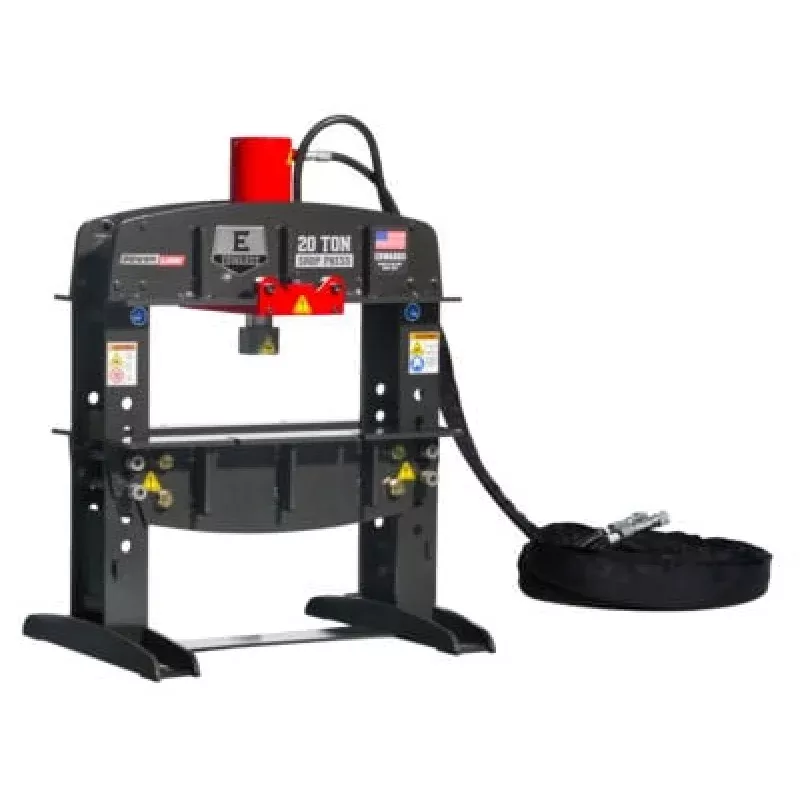

HAT2000, Edwards 20 Ton Press
Our20 Ton Shop Pressmay be small enough to fit on your work bench but it’s no lightweight. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installedHydraulic Accessory Packor anEdwards Porta Power5HP, 2750 psi portable power unit.
Features:
- Heavy-Duty3/8″Steel Construction
- Cylinder with 2″ Ram and 6-1/4″ Stroke
- Rolling Cylinder for Maximum Versatility
- Working Area of 10-1/2″ x 20″
- Easy-to-Use Hand/Jog Controls
- Quick Disconnect Hoses
- Hydraulic-Assist Table Height Adjustment
Specifications:
Standard Motor
- 5 HP 3~ 208 V or 230 V,1725 RPM 14 A
Optional Motors
- 5 HP 3~ 460 V,1725 RPM 7 A
- 5 HP 3~ 575 V,1725 RPM 6 A
- 5 HP 1~ 230 V,1725 RPM 23 A
Hydraulic Pump
- 3-1/2 GPM – 1 Stage
Valve Pressure
- 2750 PSI
Reservoir
- 7 Gallons
Cylinder
- 2″ Ram
Stroke
- 6-1/4″
Dimensions:
Height:37″
Width 27″
Depth: 24″
Shipping Weight: 400 lb
