- DRO Display for hard wired DRO kits
- Made for HiTorque bench mills and lathes
- Comes with protective cover and can be used with cover on or off
- Three 9-Pin connection ports allow use in both 3-axis and 2-axis application

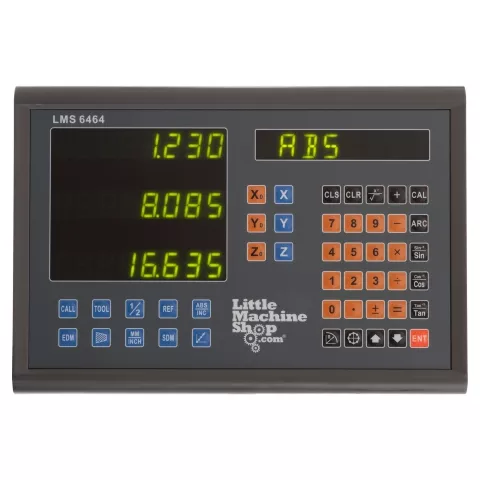

DRO display for the hard wired 2-axis and 3-axis DRO kits for HiTorque bench mills and bench lathes.
This display comes with a protective cover which can be kept on the display during use.It is designed to be used with either a vertical or horizontal stand for mill or lathe.
The display comes with three 9-Pin ports for constant connection to the machine.
See the Compatibility tab for products that work with this product.
| Repeatability | 0.0002″ (0.005 mm) |
| Resolution | 0.0002″ (0.005 mm) |
| Specified Accuracy | 0.0020″ (0.050 mm) /1 m travel |
| Accuracy / Foot | 0.0020″ (0.050 mm) |
| Accuracy / 100 Mm | 0.0020″ (0.050 mm) |
| Scale Technology | Magnetic |
| Scale Protection | Coolant & dust resistant |
| Voltage | 120-240 V |
| Clear to Zero | Yes |
| Direct Entry of Position | Yes |
| Inch/mm Display | Yes |
| Power Off Memory | Yes |
| Reversible Count Direction | Yes |
| Find Center | Yes |
| Bolt Circles | Yes |
| Bolt Lines | Yes |
| Preset Points | Yes |
| Tool Offsets | Yes |
| Radius/Diameter | Yes |
| Incremental/Absolute | Yes |
| Calculator | No |
| Arc Machining | No |
| Linear Error Compensation | No |
| Made In | China |
| Warranty | 1 years |
| Warranty | 1 year |
| Phone Tech Support | Free |
