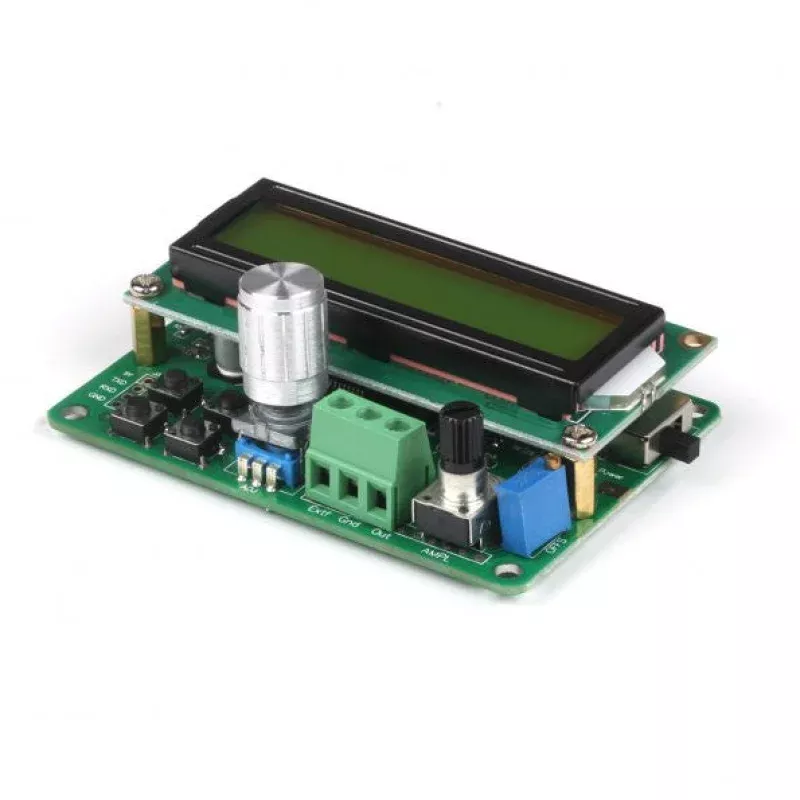

[Discontinued] SainSmart 0-50kHz DDS Function Signal Generator Module Custom arbitrary Waveform

Description:
DDS Function / Arbitrary Waveform Generator uses direct digital synthesis technique (DDS), FPGA design, interior prefabricated 7 kinds of commonly used waveform while users can also edit the output 8-bit, 256 points user-defined arbitrary waveforms ; its easy to use , the signal high stability , low distortion , with 1 watt power output, wideband frequency measurement and counter functions. The output signal amplitude and DC offset can be adjusted.

Waveforms: sine, square, triangle , ramp, user-defined waveform ( Arb ) , commonly used pulse, noise, electrocardiogram waveforms.

Main technology data:
signal output:
Output waveform Sine, square wave (variable duty cycle), triangle wave, sawtooth,
Arbitrary waveforms, commonly used pulse, noise, ECG, AM, FM and other waveforms.
Output amplitude ?0.5-8Vp-p (no load)
Output impedance 10 ohms10%
DC bias3V
Frequency Range 0.01Hz ~ 50kHz
Frequency resolution 0.01Hz(10mHz)
Frequency Accuracy 510-6
Frequency Stability 210-6/3hours
Sine wave distortion ?.8% (Reference frequency 1kHz)
Triangle wave linearity ?8% (0.01Hz~10kHz)
Square wave an increase of Fall Time ?00ns
Square wave duty cycle range 1%~99%

COUNTER Counter function:
Counting range 0-65535
Measurement frequency range 1Hz~20MHz
Input amplitude 0.5Vp-p~20Vp-p

Other:

• Display LCD1602 LCD display in English
• Storage and Recall function M0-M9 (M0: default transferred)
• Size 83mm (length)60 mm (width) x 24mm (height)
• Buzzer function Can be programmed to turn on or off
• Production Process Surface mount technology, LSI
• High reliability and long service life
• Operating Characteristics All key operations, continuous adjustment knob
• Environmental conditions Temperature?~40c Humidity<80%

Package list:

• 1 x DDS module
