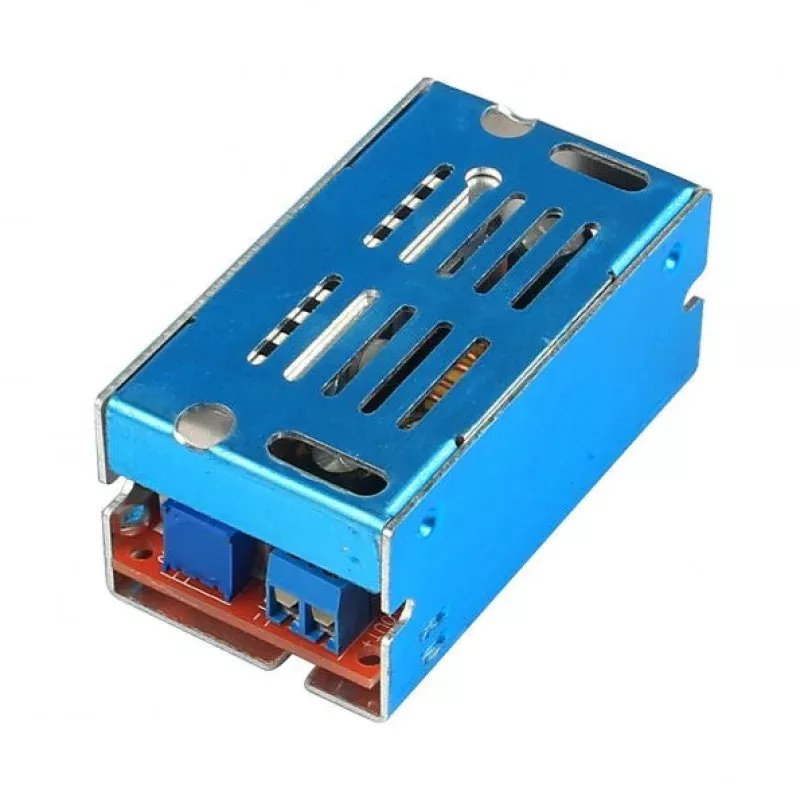

[Discontinued] DC-DC 250W Constant Current Boost Step-up Module

SPECIFICATION

• Module Properties: non-isolated step-up module (BOOST)
• Input voltage :8.5-48V
• Output voltage: 12-50V (adjustable)
• Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
• Output constant Current: 0.2 – 8A (please don’t short the output to adjust the current)
• Easy to drive 65W 90W dual-core notebook
• Conversion efficiency: 96%
• Working frequency: 150KHZ
• Output Ripple: 2% (MAX) 20M-bandwidth
• Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation)
• Dynamic response speed: 5% 200uS
• Over circuit protection: yes
• Input Reverse Polarity Protection: yes
• Size: 70mm * 42mm * 13mm

Applications:

• 1, DIY a power supply, 12V can input and output can 12-50V adjustable.
• 2.the power supply for your electronic device, according to yoursystem can set the output voltage value.
• 3, as the car power supply for your laptop, PDA or a variety of digitalproducts supply.
• 4.DIY a mobile notebook power supply: 12V coupled with high-capacitylithium battery pack, so you can go where light where books.
• 5, solar panel regulator.
• 6.to the battery, rechargeable lithium batteries.
• 7.driving high-power LED lights.

WHAT’S IN THE PACKAGE

• 1 x Boost Converter
