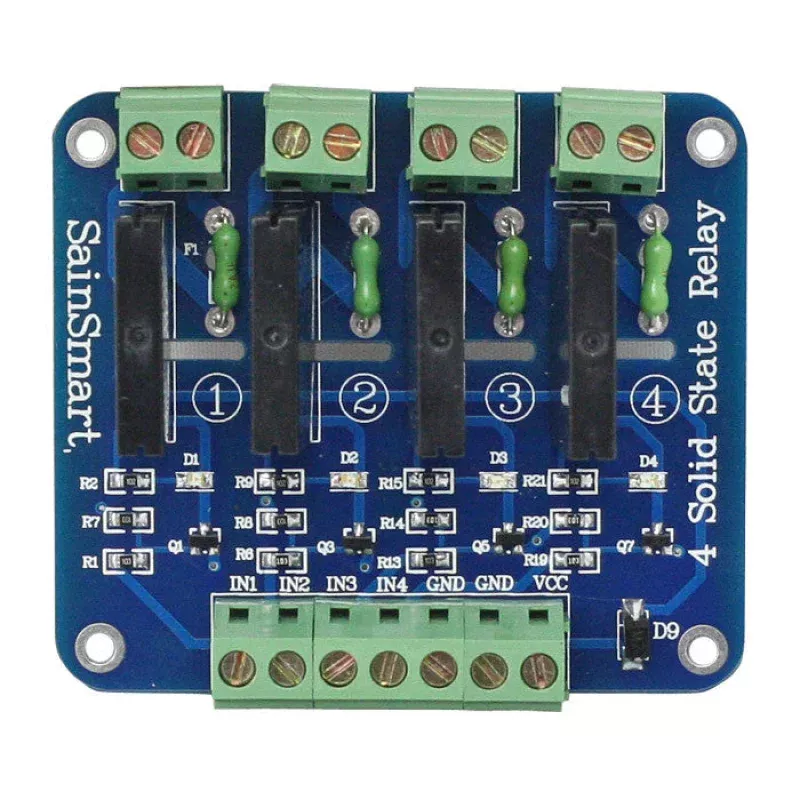

[Discontinued] 4-Channel 5V Solid State Relay Module

SPECIFICATION

• Size:71*62mm*24mm
• Power supply: 5V DC(160mA)

Input control signal voltage:

• (0-0.5V low stage SSR is OFF)
• (2.5-20V high stage SSR is ON)

SSR Output (each channel):

• Load voltage range: 75 to 264VAC (50/60Hz).
• Load current: 0.1 to 2 AMP.

Power supply:

• 5VDC / 160mA (all channel ON).

Input control signal voltage:

• 0V – 0.5V Low stage (SSR is OFF),
• 0.5V ?2.5V (unknown state).
• 2.5V – 20V High state (SSR is ON).

SSR Spec:

• Manufacturer: OMRON
• Part number: G3MB-202P, 5V version.
• Isolation: Phototriac.
• Zero cross: Yes.
• Rated output load: 2A at 100 to 240VAC.(50/60Hz).
• Load type: General purpose.
