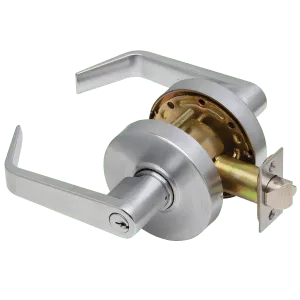

Dexter C2000 Storeroom Lever Lock

Specifications
§ Grade 2, UL listed 3-hour
§ 1 1
⁄8″ x 1 3⁄4″ door range standard
§ Brass (605) ball knobs come packaged with square-cornered
beveled with 2 3/8″ backset and ANSI 1 1
/4″ x 2 1
/4″ T-Strike standard
§ All other functions (except dummy) include 1 1
⁄8″ x 2 1
⁄4″
square-corner beveled latch with 2 3/4″ backset and ANSI 1 1
⁄4″ x 4 7
⁄8″
curved lip strike (30-148)
§ Schlage conventional 6-pin (keyed 6) cylinders in Schlage C
keyway, keyed different
§ Less SFIC option accommodates 6-pin and 7-pin cores
