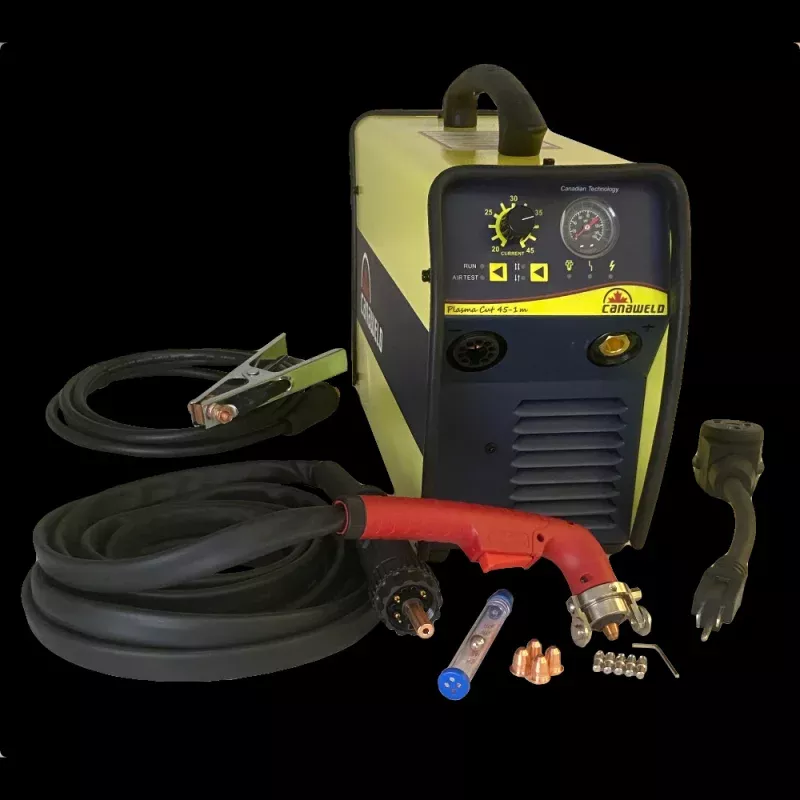

Canaweld Plasma Cutter CUT 45 D
Cut up to 5/8″, Sever up to 3/4″
The CanaweldCUT 45D plasma cutter uses the latest IGBT Inverter Technology allowing for a compact, light weight, portable design. This compact but powerful machine allows the user to cut up to 3/4 (20mm) steel plate.
- 45A of cutting power
- High Duty Cycle: 100% @ 30A, 60% @ 35A
- High quality TRAFIMIT Cutting Torch included, common easy to replace consumables (available all over North America)
- Ability to cut expanded metals and uneven surfaces
- Pilot arc (no HF) improves cutting on dirty and/or rusted metals
- Automatic shutoff if air pressure is too low or disconnected (extends consumable life)
- Automatic re-strike for quick cutting of material with gaps
- Internal pressure switch to maintain the machine within safe low & high pressure parameters
- Internal pressure regulator with built in dirt and moisture separator/filter
- Quick disconnect ground clamp assembly allowing for easy installation and removal at multiple location job sizes
- 120/230V single phase input power
- Includes 120/230V adapter
- Unit equipped with a heavy dutyNEMA 6-50 Plug
- Required air pressure minimum 60 psi, 80 psirecommended
- Recommended 6 CFM compressor or greater
- Item PLC2050527
- Made In Canada
- 3 year warranty
Link to plasma torch consumables
Download User Manual
What’s in the box?
- PLC2050525 Power Source
- Trafimit cutting torch with 20′ lead
- Ground clamp and lead
- Starter consumable kit
- Airflow tester
- Heavy Duty machine protective carry/storage bag
- 240V to 120V adapter
