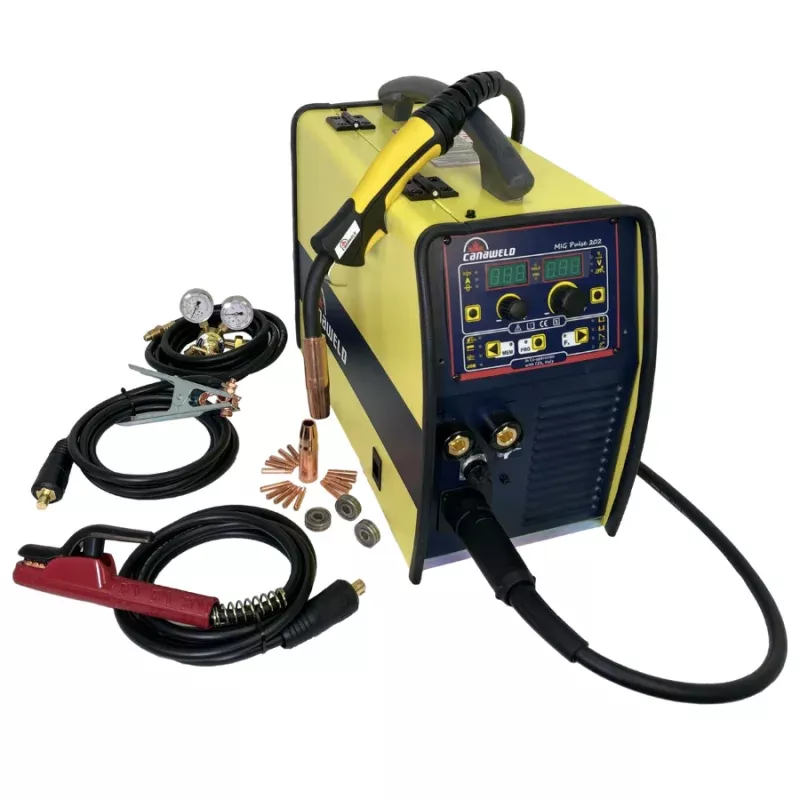

Canaweld MIG Pulse Multi-Process 202

Canaweld MIG Pulse Multi-Process 202

The MIG Pulse/Multiprocess 202 is a portable, versatile and intelligent machine. This unit is capable of Pulsed MIG welding, Stick and TIG welding with a lift start.

The synergistic (self-balancing) welding parameters make for a fast and accurate set up every time. This unit will also store up to 99 separate personalized welding programs.

The synergistic controls combined with the ability to program job settings make this the perfect unit for students or fast paced production shops.

• Multiprocess: MIG PULSE, MIG/MAG Synergic, MIG/MAG Manual, MMA and TIG Lift.
• Spool Gun compatible – See link
• Digital control of all welding parameters with preset synergic curves according to used material, gas and wire diameter.
• User-friendly and easy-to-use selection and recalling of the parameters and welding programs.
• Built-in polarity changeover facility for most common gas and gas less wires.
• Central Euro connection for the torch.
• Heavy duty metal construction wire feeding mechanism.
• Double groove rolls replaceable without any tool.
• Made In Canada
• 3 Year Warranty

Process MIG/ Flux cored Stick (SMAW) Input Voltage, Single Phase, 50/60 Hz 208240 V (10%) Primary Current@Max Welding Current 43 A 31 A Maximum Primary Effective Current(I1 eff max) 16.6 A 17.4 A Technology of Adjustment(Maual / Synergic / PULSE) Manual or Synergic / PULSE Welding Current Range 30-200 A 10-150 A Number Of Programs 99 Programs Insulation Class H H Welding Current @ 100% Duty Cycle 90 A 90 A Welding Current @ 60% Duty Cycle 105 A 105 A Open Circuit Voltage : Volt 59 V Output Voltage Range : Volt 15.5-24 V 20.4-26 V Solid Steel Wire Size Range : inch(mm) 0.023-0.040 in(0.6-1 mm) Stainless steel Wire Size Range : inch(mm) 0.023-0.040 in(0.6-1 mm) Flux-cored Wire Size Range : inch(mm) 0.030-0.045 in(0.8-1.2 mm) Aluminum Wire Size Range : inch(mm) 0.030-0.045 in(0.8-1.2 mm) Max Wire Feeder speed : ipm(m/min) 630 ipm(16 m / min) Wire Feeder Mechanism Material Metal Wire Spool Size : inch(mm) 8 or 12 inch(203 or 305 mm) Weight : lb(Kg) 44 lb(20 Kg) Dimensions Including Handle(D , W , H): inch(mm) 21.2 x 9.6 x 17.5 inch(540 x 245 x 445 mm)

Options

• Standard Package – Fits an 8″ wire spool
• Add 12″ spool external wire spool hub – Allows operator to run an 8″ spool or a 12″ spool

What’s Included

• Ground Clamp with 10 ft. Cable – ALP1980449
• Electrode Holder Set, 250 A, 10 Ft. Cable
• Gas Regulator with 10 ft. Gas Hose
• Drive Roll 0.030″-0.035″ (0.8-0.9)mm V Groove
• Driver Roll 0.030″-0.040″ (0.8-1.0)mm V Groove
• Driver Roll 0.030″-0.035″ (0.8-0.9)mm K for Flux Cored wire
• Drive Roll 0.040″-0.045″ (1.0-1.2)mm UK for Aluminum wire
• MIG Torch 200A Tweco 2 style, 10 ft.
• MIG Consumables Starter Kit

Gold Package Adds

• TIG Torch, Air cooled, 200 AMP, 9 Pin, 12 ft, Euro terminal
• TIG Consumables Starter Kit
