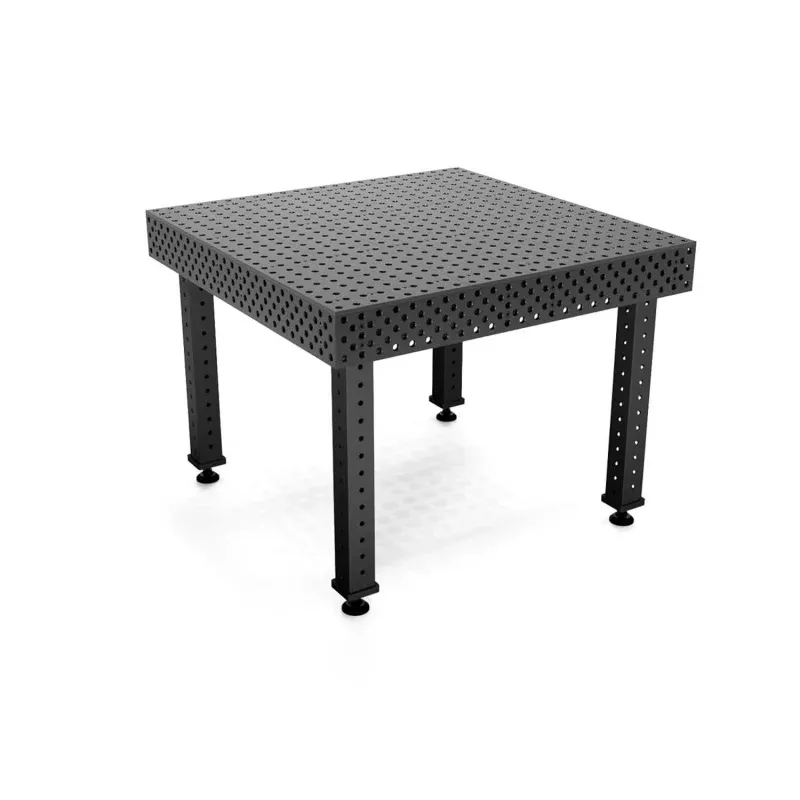

BuildPro Alpha 5/8 Fixture Table, 4′ x 4′ Nitrided

BuildPro Alpha 5/8 Welding Fixture Table

4′ x 4′ Nitrided – 5/8″ Bore Diameter Fixturing Holes

This product ships free of charge to USA (lower 48) and Canada. No import fees or duties are applied. Forklift or Loading Dock are required.

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8 diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Specifications

• Capacity:5,250 lbs (1,850 lbs with casters)

• Size:48 x 48 inches

• Flatness:+/- .005 inches per 24 x 24 inches

• Finish:Nitrided

• Hole diameter:.625 +.002/-.000 inches

• Hole spacing:2.000 +/- .001 inches

• Plate thickness:.47 +/- .004 inches

• Weight (pounds):780

Table Accuracy

Hole Diameter 0.625″ + .002 / -.000 Hole Spacing 2.000″ 0.001
Table Flatness 0.005 per 24″ x 24″
Plate Thickness 0.47″ 0.004
Tabletop Finish Nitrided (Heat Treated) Surface Hardness 58-62 HRC Coefficient of Friction 0.37

Top Plate

Material P20 Hardness 58-62 HRC

Side Plate

Material Q345B Hardness 50-55 HRC

Please allow a 5 business day processing time. Orders are shipped direct from the manufacturer and do not incurimport fees.
