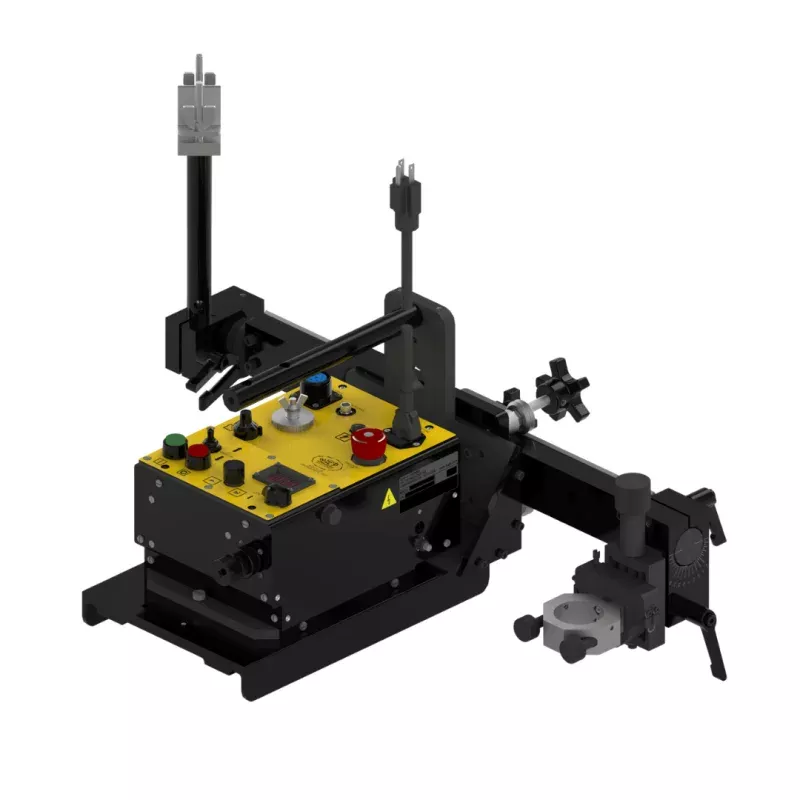

Bug-O BUG-0343 BUG-O DC IV (50:1) 120VAC
The Turnkey Solution for Off-Table, Repeatable Beveling and Cutting
For metal workers who need to easily and repeatably bevel or vertically cut metal, the DC-IV MAX is a unique turnkey solution that combines a purpose built tractor and controller from Bug-O Systems with a Powermax series or MAXPRO plasma cutting system from Hypertherm
Features
- ONETOUCHOne button start for both tractor and plasma system.
- Integrated start delay to allow arc transfer before tractor motion
- PSC, Process Stop ControlWhen the cut is done, the entire process stops automatically.
- Integrated with Hypertherm Powermax series and MAXPRO power sources
- Vertical and bevel cut charts are provided for Powermax and MAXPRO
- Torch alignment guide for bevel cutting setup
- Heavy duty racking provides smooth and stable operation
- Independent manual bevel and lead/lag angle controls
- Built-in degree dial on bevel and lead/lag angle
- Torch breakaway with auto process stop
- Auto shutdown at end of plate
- Pierce timer settable directly in seconds
- Oxy fuel accessory is available for cutting>2 (50.8 mm)
- Display shows tractor speed in inches/min or cm/min
- Emergency stop
- Tool-less setup
- Fine speed adjustment
- To accommodate the high frequency starting process of the MAXPRO200, the MAXPRO200 bundle features hardened electronics with enhanced grounding to ensure reliable use.
- Made in USA
- 120V AC Input
- Part Number: 100-0701-120
