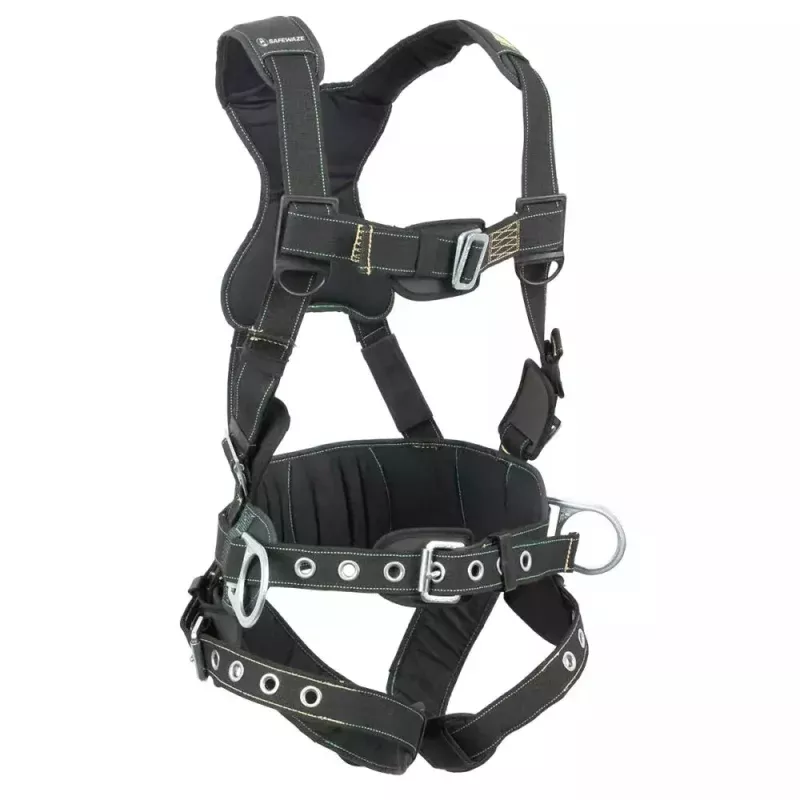

Arc Flash Construction Harness: 3D, MB Chest, TB Legs

Arc Flash

The Arc Flash Aramid Harnesses, built for utility and electrical workers, deliver dependable protection plus all-day comfort. Designed with our premium aramid ASTM approved webbing and Nomex shoulder, waist and leg pads, our Arc Flash harnesses feature either coated, corrosion-resistant dielectric hardware or standard hardware protected with our unique component backer. This durable harness provides superior protection in an arc event situation. Offered in a variety of configurations.

Features:

• Fixed dorsal D-ring
• Side D-rings
• Friction buckle torso adjusters
• Mating buckle chest
• Tongue buckle legs
• Component Backer
• Fixed waist pad with tongue-buckle belt
• Fixed leg pads
• 40Cal/700F rated aramid webbing

Specifications:

Materials: Aramid, zinc-plated steel, Nomex, polyester, stainless steel Weight: 5.6 lbs. (2.5 kg) Attachment Points: – 1 dorsal D-ring – 2 side positioning D-rings ANSI Weight Capacity: 130-310 lbs. (59-141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) OSHA Standards: 1926.502, 1910.140 ANSI Standards: Z359.11-2021 ASTM Standards: F887
