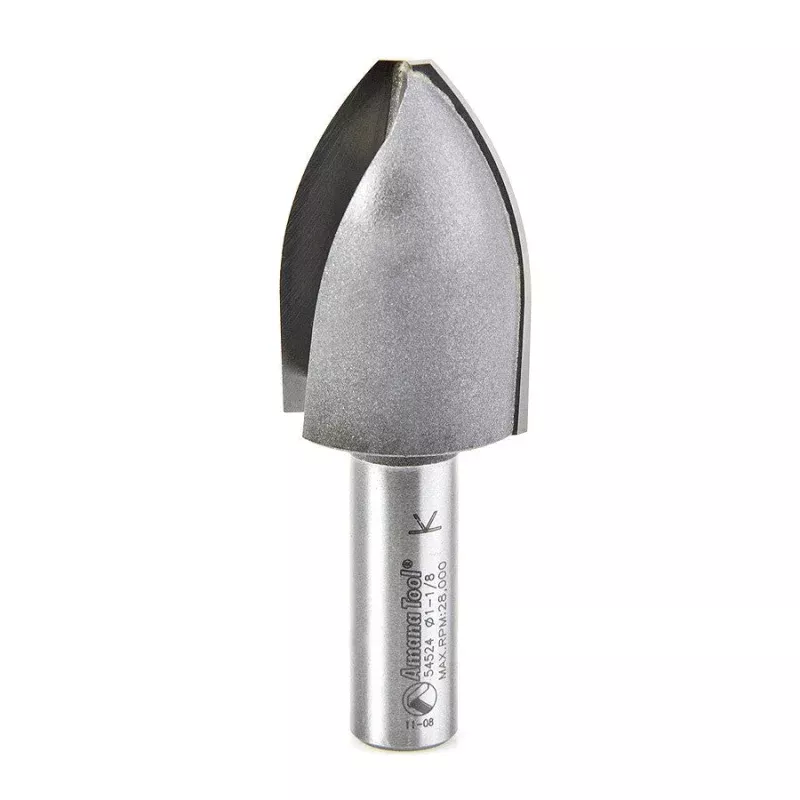

54524, Amana Carbide Tipped Cove Vertical Raised Panel 1-9/16 Radius x 1-1/8 Dia x 1-5/8 x 1/2 Inch Shank
Raised panels with a low-horsepower, fixed speed router using these patented VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: “cathedral” door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.
Specifications:
- Tool No. 54524
- Diameter (D) 1-1/8
- Cutting Height (B) 1-5/8
- Shank (d) 1/2
- Overall Length (L) 3-1/8
- R1 1-9/16
- Flutes 2
- D1 9/32
